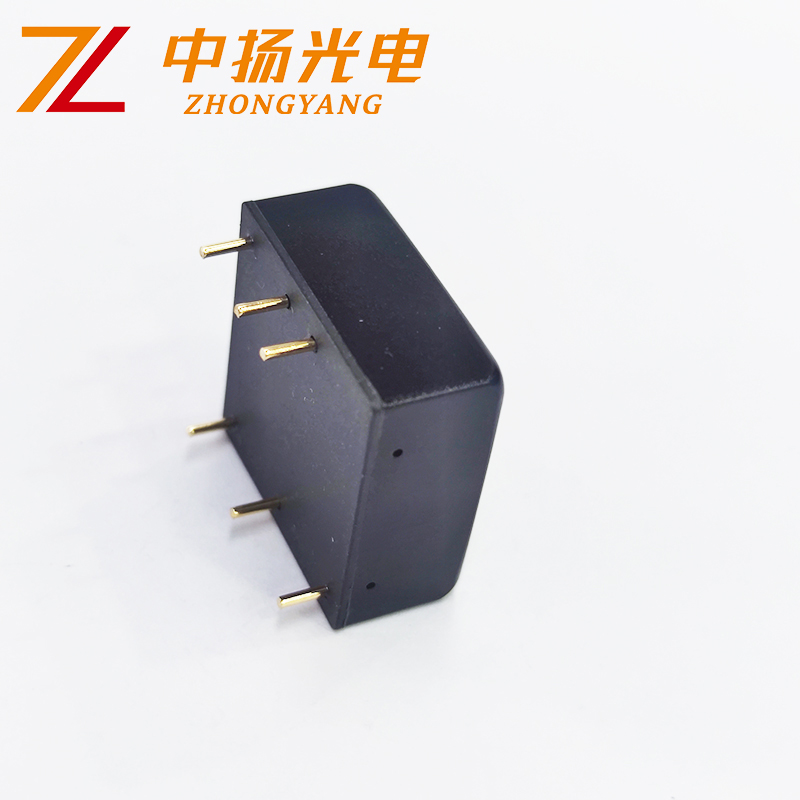

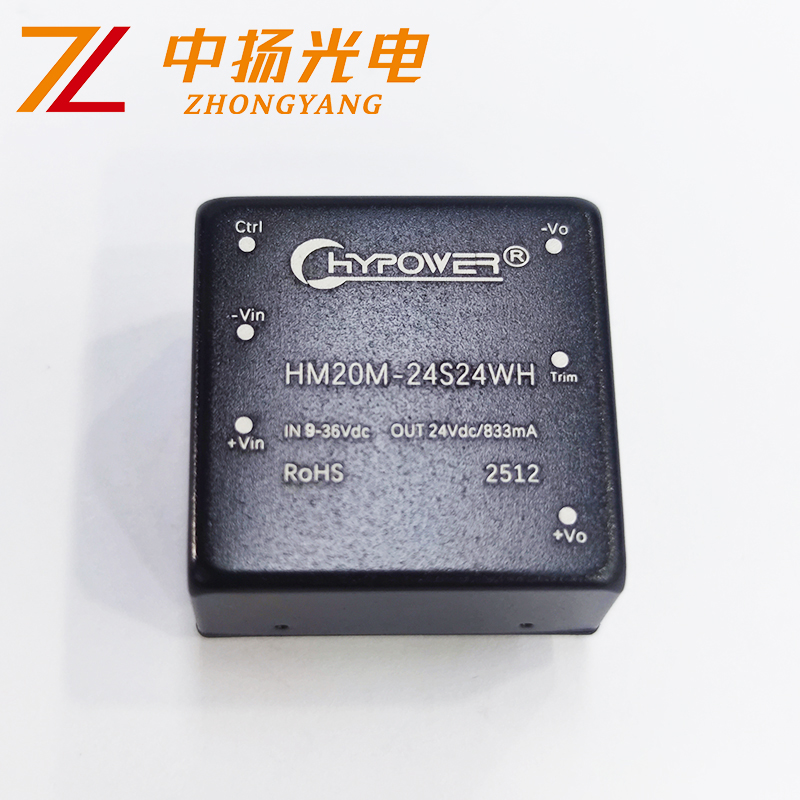

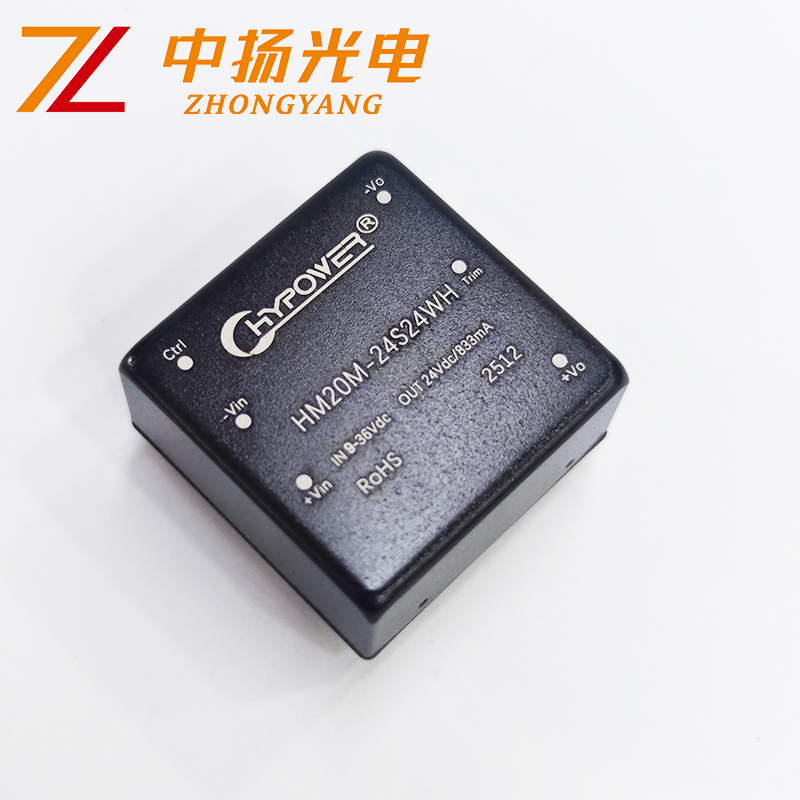

Wide voltage input, isolated stabilizer output series（HM20M-24S24WH)
-
Isolation voltage 1500/3000Vdc .
-
Operating temperature-40℃～+105℃ .
-
Performance is stable, reliability is high. (MTBF 2 million hours).
-
Flame-retardant housing encapsulation, meeting UL94-V0 requirements.
-
Comply with RoHS Directive requirements.
-
Certified Quality: Complies with CE, UL, CB, RoHS , and CCC standards for global reliability.
Product Description
The Zhongyang Wide pressure input isolation stabilizer output series (SIP / DIP package 3-60W) With high power density, it saves system space; adaptable to harsh environments, stable and reliable; high efficiency, high reliability and other advantages. Widely used in various fields such as network communication, industrial control, military equipment, medical equipment, automotive electronics, rail transportation, green energy and semiconductor testing equipment.
Key Features:
-
Isolation voltage 1500/3000Vdc .
-
Operating temperature-40℃～+105℃ .
-
Performance is stable, reliability is high. (MTBF 2 million hours).
-
Flame-retardant housing encapsulation, meeting UL94-V0 requirements.
-
Comply with RoHS Directive requirements.
-
Certified Quality: Complies with CE, UL, CB, RoHS , and CCC standards for global reliability.
Applications:
- Industrial control and automation equipment.
- Communication and network equipment.
- Military electronic equipment.
- Instrumentation and semiconductor testing equipment.
- Medical instruments and equipment.
- Automotive electronics, railway transportation.
- Green energy
HPxx-HMxx
| Wide pressure input isolation stabilizer output series (SIP / DIP package 3-60W) |
||||||
|---|---|---|---|---|---|---|
| Product Pictures | Series | Power（W） | Input voltage（V） | Output voltage（ V） | Isolation voltage（ V） | Package dimensions |
 | HP03K-xxSxxW HP03K-xxSxxDW HP06K-xxSxxW | 1~6 | 4.5-18 9-36 18-75 | 3.3、 5、 9 12、 15、 24 | 1500 3000 | SIP：21.8*9.3*11.2 DIP：23.8*14*8 |
| HP03K-xxDxxW HP03K-xxDxxDW HP06K-xxDxxW | 1~6 | 4.5-18 9-36 18-75 | ±3.3、 ±5、±9 ±12、± 15、 ±24 | 1500 3000 |
||
  | HP06L-xxSxxW | 6 | 4.5-18 9-36 18-75 | 3.3、 5、 9 12、 15、 24 | 1500 3000 | DIP：31.8*20.3*10.2 |
| HP06L-xxDxxW | 6 | 4.5-18 9-36 18-75 | ±3.3、 ±5、±9 ±12、± 15、 ±24 | 1500 3000 |
||
  | HM03L-xxSxxW | 3 | 4.5-18 9-36 18-75 | 3.3、 5、 9 12、 15、 24 | 1500 3000 | DIP：31.8*20.3*10.8 |
| HM03L-xxDxxW | 3 | 4.5-18 9-36 18-75 | ±3.3、 ±5、±9 ±12、± 15、 ±24 | 1500 3000 |
||
| HM06L-xxSxxW | 6 | 4.5-18 9-36 18-75 | 3.3、 5、 9 12、 15、 24 | 1500 3000 |
||
| HM06L-xxDxxW | 6 | 4.5-18 9-36 18-75 | ±3.3、 ±5、±9 ±12、± 15、 ±24 | 1500 3000 |
||
  | HM10L-xxSxxW | 10 | 4.5-18 9-36 18-75 | 3.3、 5、 9 12、 15、 24 | 1500 3000 | DIP：31.8*20.3*10.8 |
| HM10L-xxDxxW | 10 | 4.5-18 9-36 18-75 | ±3.3、 ±5、±9 ±12、± 15、 ±24 | 1500 3000 |
||
  | HM06M-xxSxxW | 6 | 4.5-18 9-36 18-75 | 3.3、 5、 9 12、 15、 24 | 1500 3000 | DIP：25.4*25.4*11.7 |
| HM06M-xxDxxW | 6 | 4.5-18 9-36 18-75 | ±3.3、 ±5、±9 ±12、± 15、 ±24 | 1500 3000 |
||
  | HM10M-xxSxxW | 10 | 4.5-18 9-36 18-75 | 3.3、 5、 9 12、 15、 24 | 1500 3000 | DIP：25.4*25.4*11.7 |
| HM10M-xxDxxW | 10 | 4.5-18 9-36 18-75 | ±3.3、 ±5、±9 ±12、± 15、 ±24 | 1500 3000 |
||
  | HM15M-xxSxxW | 15 | 9-36 18-75 | 3.3、 5、 9 12、 15、 24 | 1500 3000 | DIP：25.4*25.4*11.7 |
| HM15M-xxDxxW | 15 | 9-36 18-75 | ±3.3、 ±5、±9 ±12、± 15、 ±24 | 1500 3000 |
||
  | HM20M-xxSxxW | 20 | 9-36 18-75 | 3.3、 5、 9 12、 15、 24 | 1500 3000 | DIP：25.4*25.4*11.7 |
| HM20M-xxDxxW | 20 | 9-36 18-75 | ±3.3、 ±5、±9 ±12、± 15、 ±24 | 1500 3000 |
||
 | HM30M-xxSxxW | 30 | 9-36 18-75 | 3.3、 5、 9 12、 15、 24 | 1500 3000 | DIP：25.4*25.4*11.7 |
| HM30M-xxDxxW | 30 | 9-36 18-75 | ±3.3、 ±5、±9 ±12、± 15、 ±24 | 1500 3000 |
||
| HM40M-xxSxxW | 40 | 9-36 18-75 | 3.3、 5、 9 12、 15、 24 | DIP：25.4*25.4*1 | ||
| HM40M-xxDxxW | 40 | 9-36 18-75 | ±3.3、 ±5、±9 ±12、± 15、 ±24 | 1500 3000 |
||
  | HM10N-xxSxxW | 10 | 9-36 18-75 | 3.3、 5、 9 12、 15、 24 | 1500 3000 | DIP：50.8*25.4*11.7 |
| HM10N-xxDxxW | 10 | 9-36 18-75 | ±3.3、 ±5、±9 ±12、± 15、 ±24 | 1500 3000 |
||
  | HM15N-xxSxxW | 15 | 9-36 18-75 | 3.3、 5、 9 12、 15、 24 | 1500 3000 | DIP：50.8*25.4*11.7 |
| HM15N-xxDxxW | 15 | 9-36 18-75 | ±3.3、 ±5、±9 ±12、± 15、 ±24 | 1500 3000 |
||
 | HM20N-xxSxxW | 20 | 9-36 18-75 | 3.3、 5、 9 12、 15、 24 | 1500 3000 | DIP：50.8*25.4*11.7 |
| HM20N-xxDxxW | 20 | 9-36 18-75 | ±3.3、 ±5、±9 ±12、± 15、 ±24 | 1500 3000 |
||
  | HM30M-xxDxxW | 30 | 9-36 18-75 | 3.3、 5、 9 12、 15、 24 | 1500 3000 | DIP：50.8*25.4*11.7 |
| HM30N-xxDxxW | 30 | 9-36 18-75 | ±3.3、 ±5、±9 ±12、± 15、 ±24 | 1500 3000 |
||
  | HM60N-xxSxxW | 60 | 9-36 18-75 | 3.3、 5、 9 12、 15、 24 | 1500 3000 | DIP：50.8*25.4*11.7 |
| HM60N-xxDxxW | 60 | 9-36 18-75 | ±3.3、 ±5、±9 ±12、± 15、 ±24 | |||
  | HM20S-xxSxxW | 20 | 9-36 18-75 | 3.3、 5、 9 12、 15、 24 | DIP：50.8*40.6*11.7 | |
| HM20S-xxDxxW | 20 | 9-36 18-75 | ±3.3、 ±5、±9 ±12、± 15、 ±24 | |||
  | HM30S-xxSxxW | 30 | 9-36 18-75 | 3.3、 5、 9 12、 15、 24 | DIP：50.8*40.6*11.7 | |
| HM30S-xxDxxW | 30 | 9-36 18-75 | ±3.3、 ±5、±9 ±12、± 15、 ±24 | |||
| HM60S-xxSxxW | 60 | 9-36 18-75 | 3.3、 5、 9 12、 15、 24 | DIP：50.8*40.6*11.7 | ||
| HM60S-xxDxxW | 60 | 9-36 18-75 | ±3.3、 ±5、±9 ±12、± 15、 ±24 | |||
package 3-60W)
