Standard adapter power supply series（ZY600S12001 Adapter power supply）

Product Description

The Zhongyang ZY 600S12001 is a power module applied to consumer adapter, with a variety of different power series, including 12W, 24W, 48W, 60W, 65 W; with the advantages of small size, high reliability, no noise, high efficiency and high cost performance. The operating temperature range is-10℃ to + 4 0℃. With overcurrent, short-circuit protection and other functions.

• Input voltage range: 90VAC~ 264VAC
• No-load power consumption is low at <0.1W
• Meet the six-level energy efficiency requirements
• With 3C, UL, FCC and other certification requirements
• Anti-lightning surge, group pulse
• Output isolation, with short-circuit protection

Applications:

• Industrial Internet of Things control and automation equipment
• Communication and network equipment
• Security monitoring system
• Intelligent buildings and intelligent lighting
• Medical health, medical equipment, laboratory instruments
• Retail and commerce: POS cash register, digital signage
• Smart home: smart camera, gateway, light controller, PoE networking of the whole house

Product selection	ZY600S12001	ZY600S24001	ZY600S48001

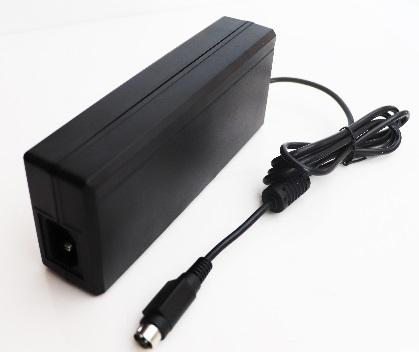

product picture
Input voltage	90～264VAC		90～264VAC
Output voltage/current	12V/5A	24V/2.5A	48V/1.25A
Voltage regulation accuracy	±5%		±5%
Efficiency	≥88%	≥90%	≥90%
Protection feature	Overcurrent protection、Overvoltage protectionshort 、Short circuit protection
Reference standards	GB4943/IEC62368、GB2324、EN55022、IEC61000、GB 17625、GB/T17626、GB/T14714
Operating temperature/humidity	-20℃~50℃；5%~95%RH non-condensing
Altitude	2000m（Above 3000m, the height rises by 100m，Environment temperature drops 0.6℃）
Heat dissipation method	natural cooling
Product appearance dimensions	258*118*35mm
Product packaging weight	375g
