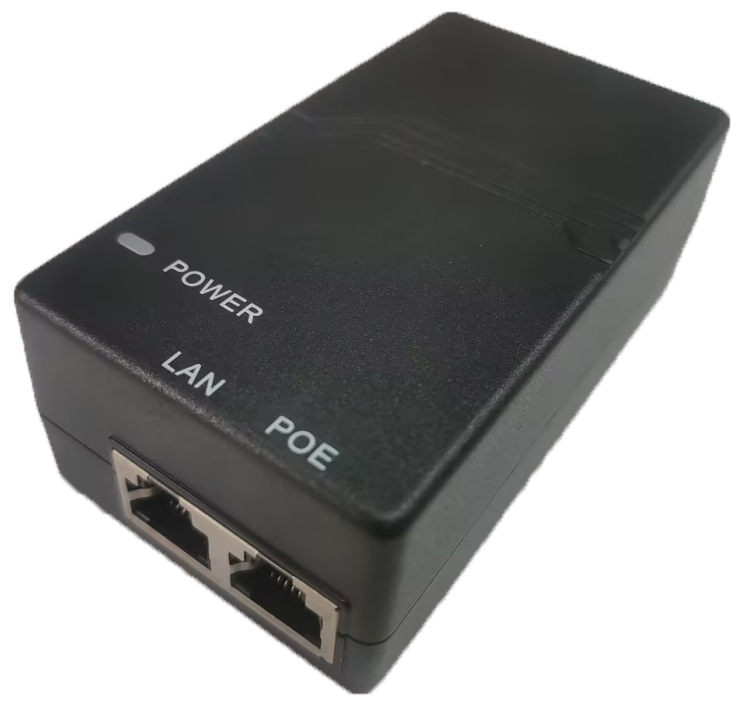

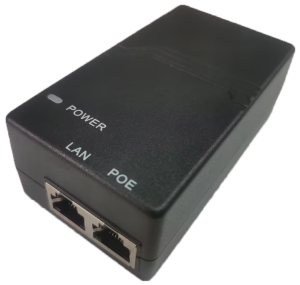

Customized AC/DC power supply series（ZY200S48001 AF Standard POE power supply appliances）
-
Fully meet the IEEE802.3 af standard
-
The global commercial voltage
-
input range is 90VAC~ 264VAC In terms of efficiency, they meet the implementation standard of six levels of energy efficiency
-
Transmission distance of 100m of network cable
-
100% full load aging work, high reliability
-
Output belt with short-circuit protection, over-current protection Input short-circuit protection, lightning strike protection
-
Excellent EMI characteristics
Product Description
The Zhongyang Customized AC/DC power supply series ZY200S48001 is a POE power supply appliance that meets the IEEE802.3 af standard. It has the characteristics of global voltage input voltage, small volume, low power consumption and high reliability. The operating temperature range of the power supply is-10℃ ~ + 40℃, which has low static power consumption and complete protection function, and supports the maximum transmission distance of 100m network cable.
-
Fully meet the IEEE802.3 af standard
-
The global commercial voltage
-
input range is 90VAC~ 264VAC In terms of efficiency, they meet the implementation standard of six levels of energy efficiency
-
Transmission distance of 100m of network cable
-
100% full load aging work, high reliability
-
Output belt with short-circuit protection, over-current protection Input short-circuit protection, lightning strike protection
-
Excellent EMI characteristics
Applications:
- Industrial Internet of Things control and automation equipment
- Communication and network equipment
- Security monitoring system
- Intelligent buildings and intelligent lighting
- Medical health, medical equipment, laboratory instruments
- Retail and commerce: POS cash register, digital signage
- Smart home: smart camera, gateway, light controller, PoE networking of the whole house
| Product selection | ZY200S48001 AF | ZY340S54001 AT | ZY650S54001 BT |
|---|---|---|---|

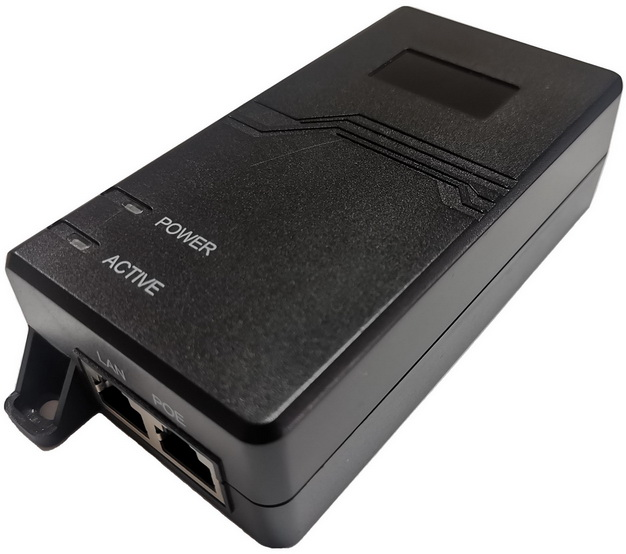

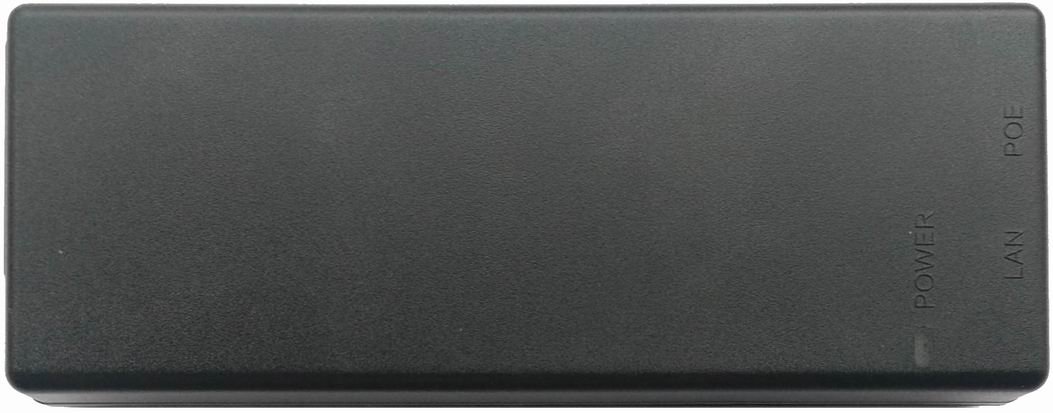

| product picture |  |  |  |
| Input voltage | 90～264VAC | 90～264VAC | 90～264VAC |
| Output voltage/current | 48Vdc～ 54Vdc | 50Vdc～ 54Vdc | 51Vdc～ 56Vdc |
| Voltage regulation accuracy | ±5% | ±5% | ±5% |
| Efficiency | ≥83% | ≥84.5% | ≥87% |
| Protection feature | Overcurrent protection、Overvoltage protectionshort 、Short circuit protection | ||
| Reference standards | GB4943/IEC62368、GB2324、EN55022、IEC61000、GB 17625、GB/T17626、GB/T14714 | ||
| Operating temperature/humidity | -40℃~60℃；5%~95%RH non-condensing | ||
| Altitude | 5000m（Above 3000m, the height rises by 100m，Environment temperature drops 0.6℃） | ||
| Heat dissipation method | natural cooling | ||
| Product appearance dimensions | 95*45*32mm | 112*40*32mm | 120*62*32mm |
| Product packaging weight | 300g | 480g | 650g |
