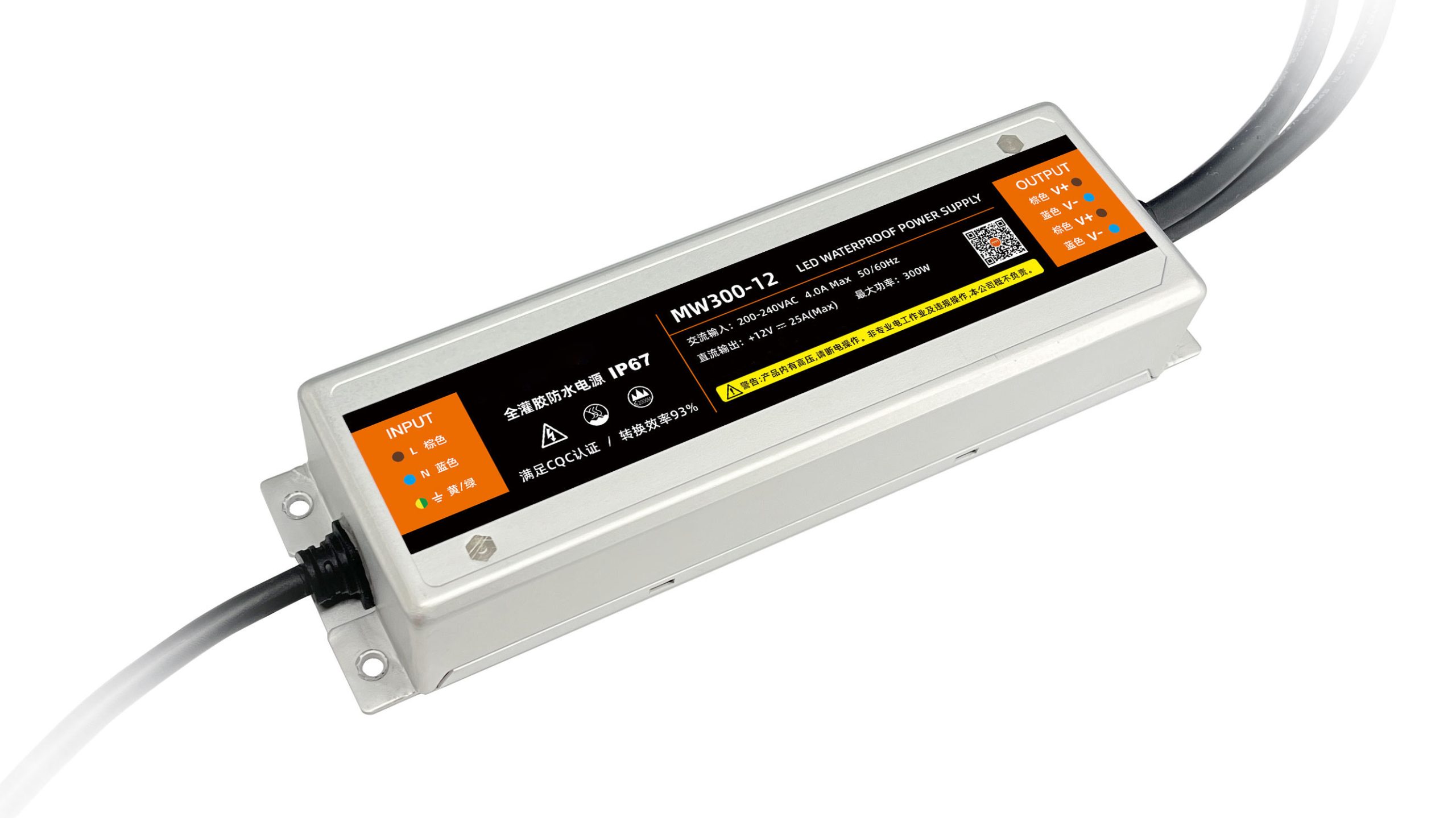

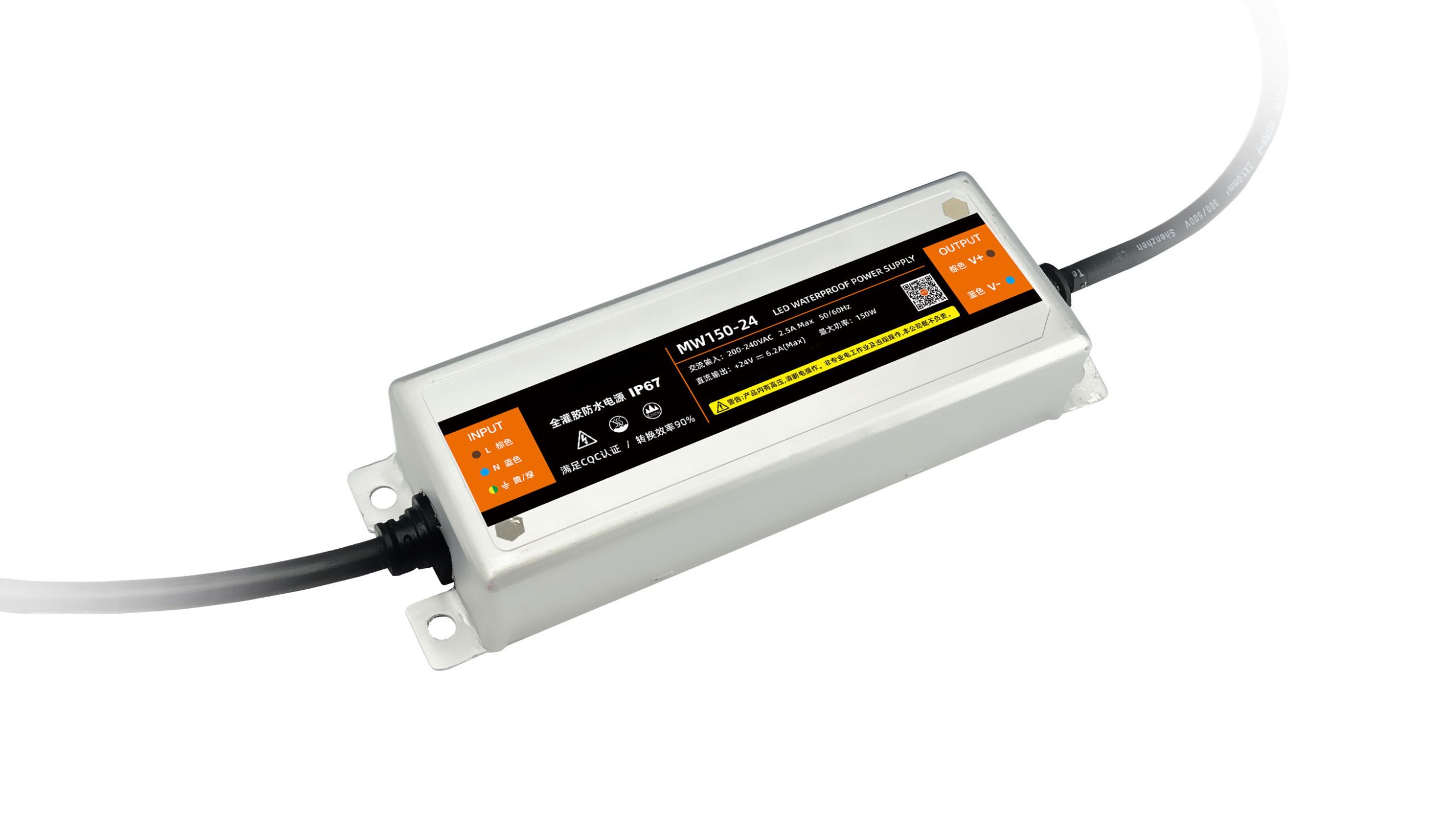

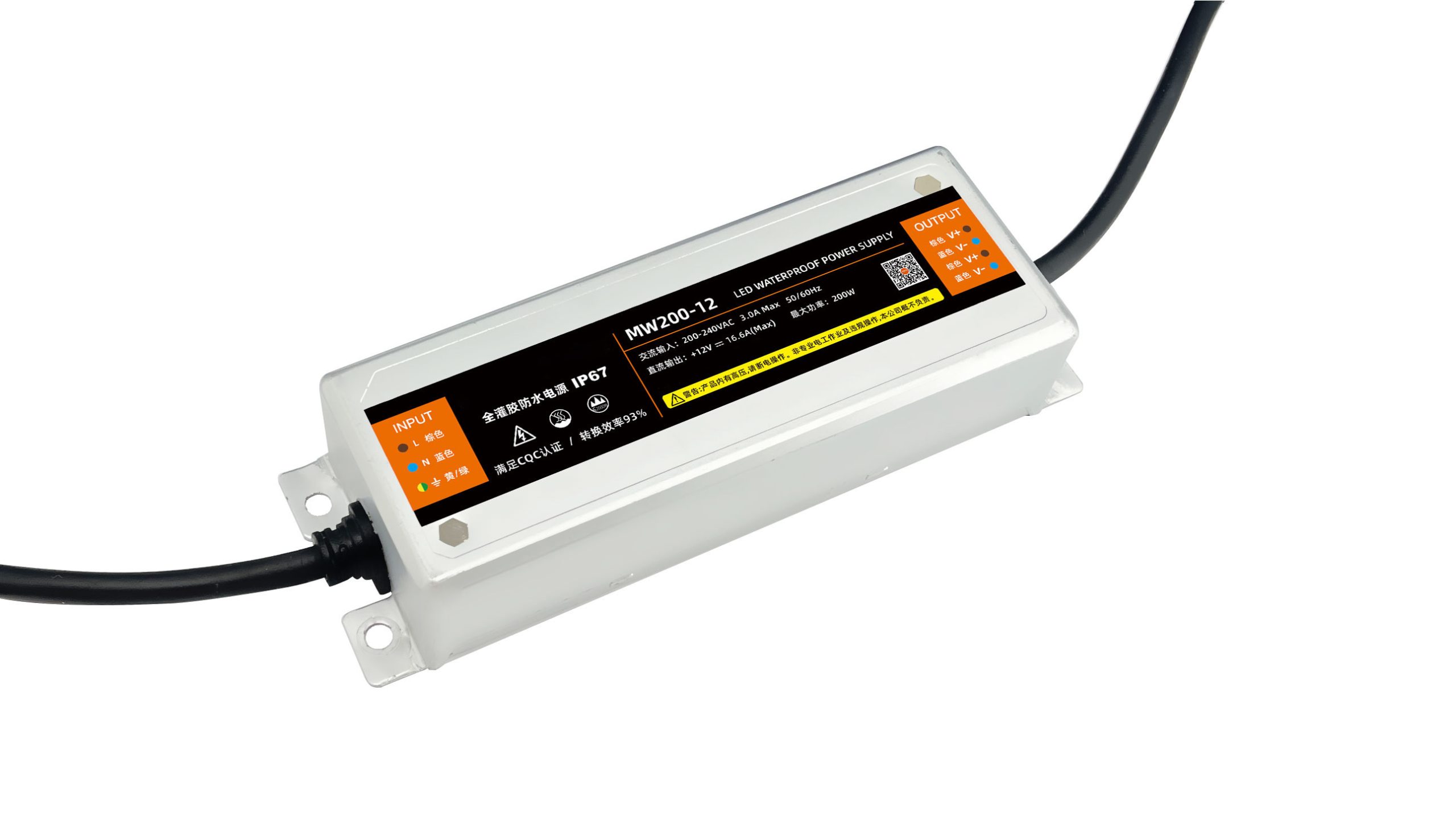

60W-400W MW Series An IP67-level waterproof power supply specifically designed for outdoor LED lighting security network communication
-
Reliable Performance: Output power up to 400W with ≥86% efficiency and ±3% voltage regulation accuracy.
-
Output power: 60W-300W, Output voltage: 12V and 24V options available.
-
Full Protection: Integrated overvoltage, overcurrent, and short circuit protection for safety and longevity.
-
Wide Operating Range: Operates smoothly in temperatures from -30°C to +50°C and in 5%~95% humidity (non-condensing).
-
Compact Design: It is ultra-thin, highly efficient, energy-saving, and silen, easy to install in tight spaces.
-
Certified Quality: Complies with CE, RoHS, ISO9001, and CCC standards for global reliability.
- Ip67-level waterproof function
Product Description
The Zhongyang MW series is an IP67-level waterproof power supply specifically designed for outdoor LED lighting, advertising light box security monitoring systems, and network communication systems. It can also be used in industrial automation and control systems. It adopts an all-aluminum shell design and is fully sealed with glue inside, achieving perfect heat dissipation function. It has an extremely strong waterproof ability and is mostly used in special environments such as damp, corrosive or underwater. It features a wide input power supply range, suitable for global use. It adopts components from well-known brands, offering high reliability and long service life. It has a wide operating temperature range, complete protection functions, high efficiency and easy installation.
Key Features:
-
Reliable Performance: Output power up to 400W with ≥86% efficiency and ±3% voltage regulation accuracy.
-
Output power: 60W-300W, Output voltage: 12V and 24V options available.
-
Full Protection: Integrated overvoltage, overcurrent, and short circuit protection for safety and longevity.
-
Wide Operating Range: Operates smoothly in temperatures from -30°C to +50°C and in 5%~95% humidity (non-condensing).
-
Compact Design: It is ultra-thin, highly efficient, energy-saving, and silen, easy to install in tight spaces.
-
Certified Quality: Complies with CE, RoHS, ISO9001, and CCC standards for global reliability.
- Ip67-level waterproof function
Applications:
- LED Lighting and Display (Largest application Field)
- Outdoor LED lighting: street lamps, tunnel lights, floodlights, landscape lights, wall-washing lights, garden lights, etc.
- Outdoor LED display screens: advertising screens, traffic guidance screens, large screens for sports venues.
- Underwater or damp area lighting: fountain lights, swimming pool lights, underground passage lighting.
- Outdoor advertising light box
- Industrial control and automation equipment
- Security and monitoring systems
- Communication and network equipment
- Network and communication facilities
| Product selection | ZY-MW60-12 | ZY-MW60-24 | ZY-MW100-12 | ZY-MW100-24 | ZY-MW150-12 | ZY-MW150-24 | ZY-MW200-12 | ZY-MW200-24 | ZY-MW300-12 | ZY-MW300-24 | ZY-MW400-12 | ZY-MW400-24 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Input voltage | 176～264VAC | 176～264VAC | 176～264VAC | 176～264VAC | 176～264VAC | |||||||
| Output voltage/current | 12V 5A | 24V 2.5A | 12V 8.3A | 24V 4.2A | 12V 12.5A | 24V 6.2A | 12V 16.5A | 24V 8.3A | 12V 25A | 24V 15A | 12V 33A | 24V 16.5A |
| Voltage regulation accuracy | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Efficiency | ≥87% | ≥88% | ≥88% | ≥88% | ≥87% | ≥88% | ≥87% | ≥88% | ≥87% | ≥88% | ≥87% | ≥88% |
| Protection feature | Overcurrent protection、Overvoltage protectionshort 、Short circuit protection | |||||||||||
| Reference standards | GB4943/IEC62368、GB2324、EN55022、IEC61000、GB 17625、GB/T17626、GB/T14714 | |||||||||||
| Operating temperature/humidity | -30℃~50℃；5%~95%RH non-condensing | |||||||||||
| Altitude | 2000m（Above 3000m, the height rises by 100m，Environment temperature drops 0.6℃） | |||||||||||
| Three-proof requirements | IP68 | IP68 | IP68 | IP68 | IP68 | IP68 | ||||||
| Heat dissipation method | natural cooling | natural cooling | natural cooling | natural cooling | natural cooling | natural cooling | ||||||
| Product appearance dimensions | 120*29*20.5mm | 150*29*20.5mm | 180*29*20.5mm | 175*78*38mm | 215*78*38mm | 245*78*38mm | ||||||
| Product packaging weight | 356g | 524g | 926g | 1.35KG | 2.15KG | 2.75KG | ||||||
| Quantity per box | 75PCS | 60PCS | 60PCS | 45PCS | 45PCS | 30PCS | ||||||
| outer box dimensions | 450*389*196mm | 450*389*196mm | 461*301*209mm | 461*301*209mm | 511*305*192mm | 511*305*192mm | ||||||
| weight per box | 16.5kg | 16.5kg | 16.5kg | 16.5kg | 16.5kg | 16.5kg | ||||||
FAQ
When can I get the quotation?
We usually quote within 8 hours after receiving your inquiry. If you are having a very urgent project that needs our quick response, please call us or tell us in your email so that we will regard your inquiry as a priority.
How can I get a sample for quality check?
After price confirmation, you can require samples to check our quality. If you need samples, we will charge the sample cost. But the sample cost can be refunded after order confirmation and the quantity exceeds our MOQ.
Why should you buy from us not from other suppliers?
- With more than 500 workers to ensure timely delivery.
- Our R&D team with more than 20 years' experience on lighting business.
- Platinum partner of OSRAM, Strategic partner of EUCHIPS.
- CB,CE,ROHS,COC,BIS,SAA,ETL certifications approved.
What services can we provide?
We offer the following services and terms:
- Delivery Terms: FOB, CFR, CIF, EXW, CIP, Express Delivery
- Accepted Payment Currencies: USD, EUR, HKD, GBP, CNY
- Accepted Payment Methods: T/T, L/C, Credit Card, PayPal, Western Union, Cash
- Languages Spoken: English, Chinese, Spanish, Japanese
Can you provide ODM/OEM service?
Yes,we have more than 20 years experience in lighting business and we are sure can provide ODM/OEM service for customers.
What's your delivery date?
Usually different items have different delivery date; normal products the delivery date for bulk production is around 20-30 days. For sample is 7-10days.
