60W-400W MR Series Indoor power supply for industrial control, network communication, LED lighting, and security monitoring systems
-
Reliable Performance: Output power up to 400W with ≥85% efficiency and ±3% voltage regulation accuracy.
-
Output power: 60W-400W, Output voltage: 12V and 24V options available.
-
Full Protection: Integrated overvoltage, overcurrent, and short circuit protection for safety and longevity.
- Product Process：The product adopts a semi-potting process
-
Wide Operating Range: Operates smoothly in temperatures from -30°C to +50°C and in 5%~95% humidity (non-condensing).
-
Compact Design: It is ultra-thin, highly efficient, energy-saving, and silen, easy to install in tight spaces.
-
Certified Quality: Complies with CE, RoHS, ISO9001, and CCC standards for global reliability.
Product Description

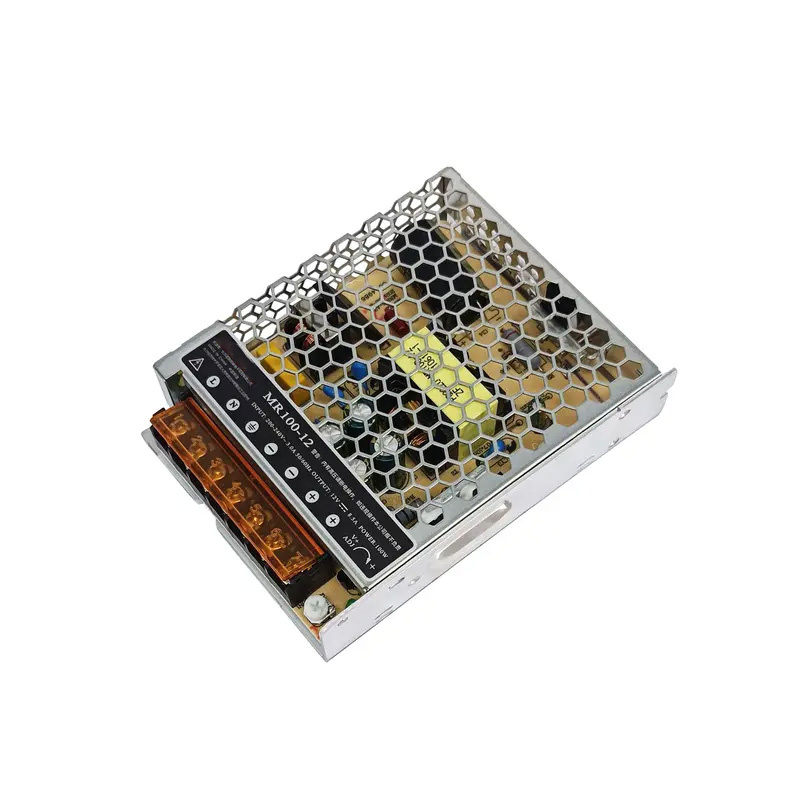

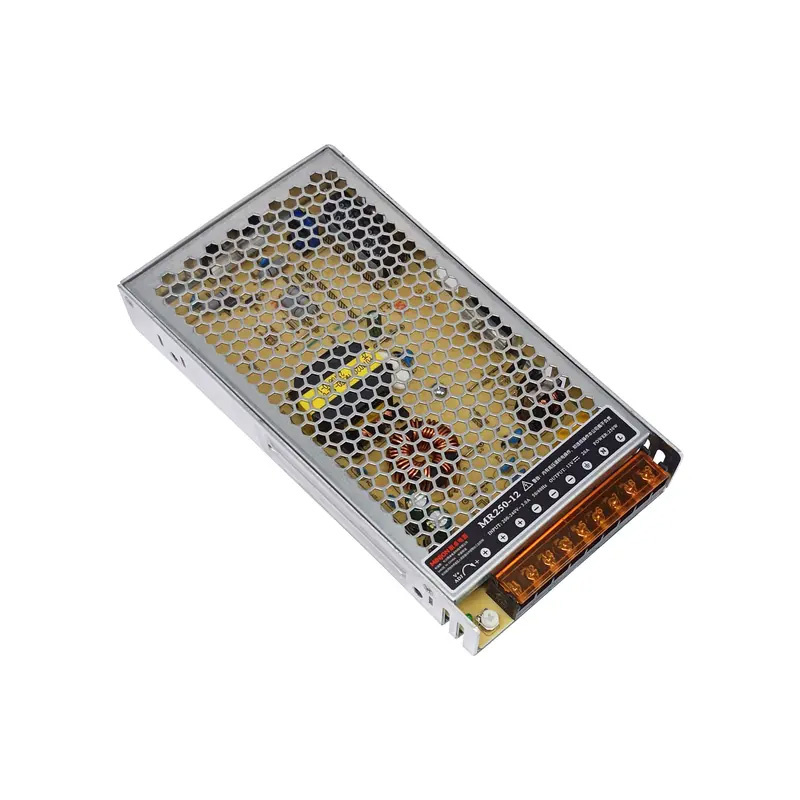

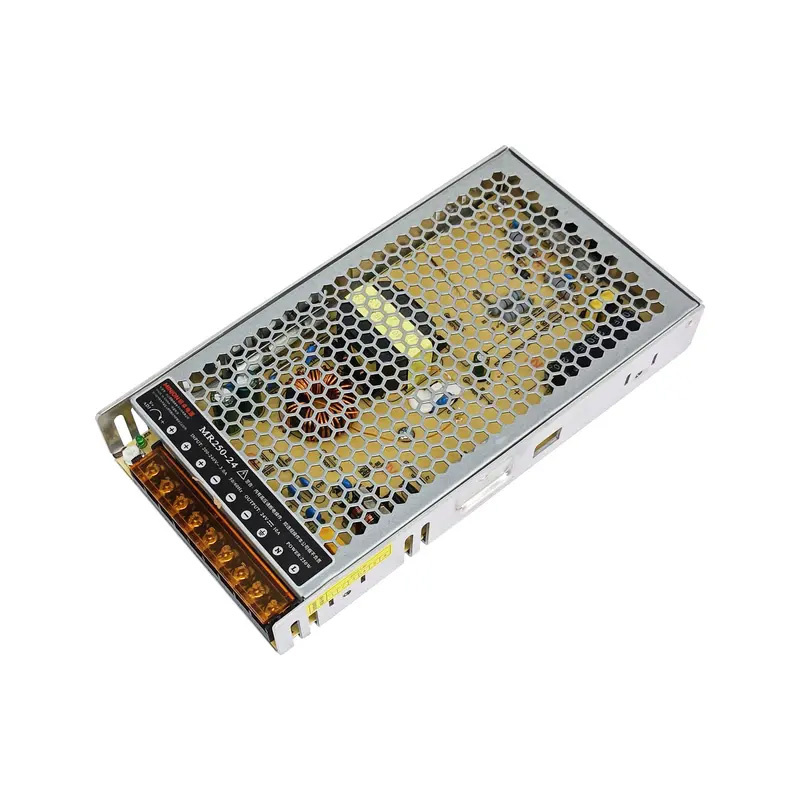

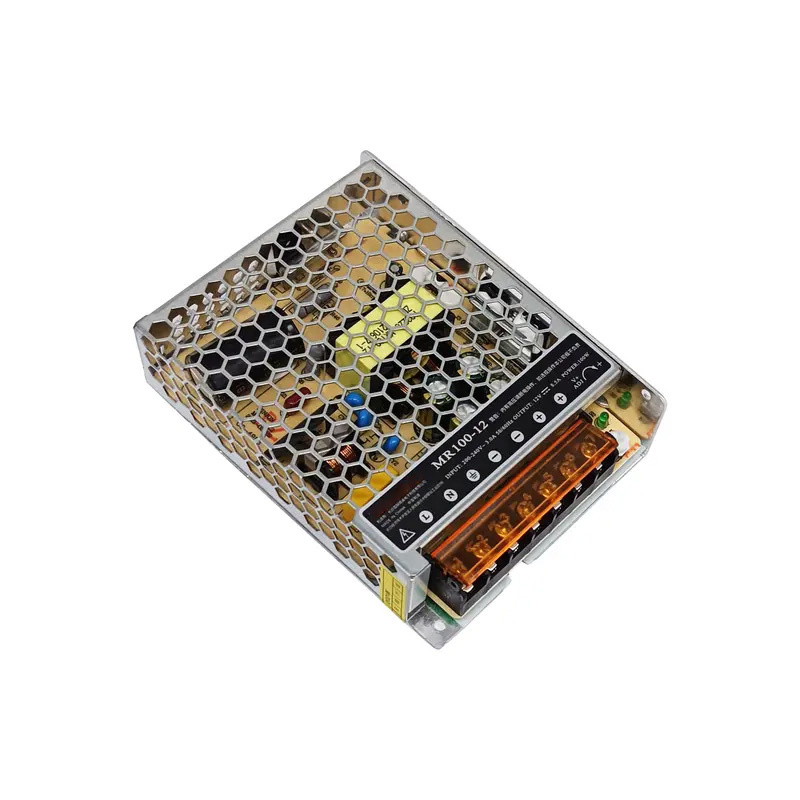

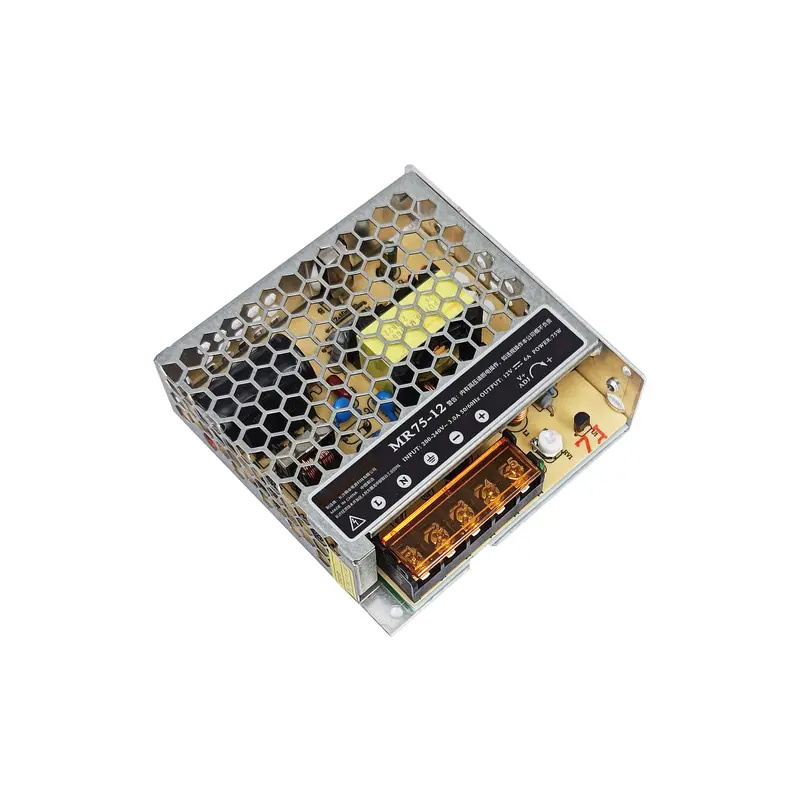

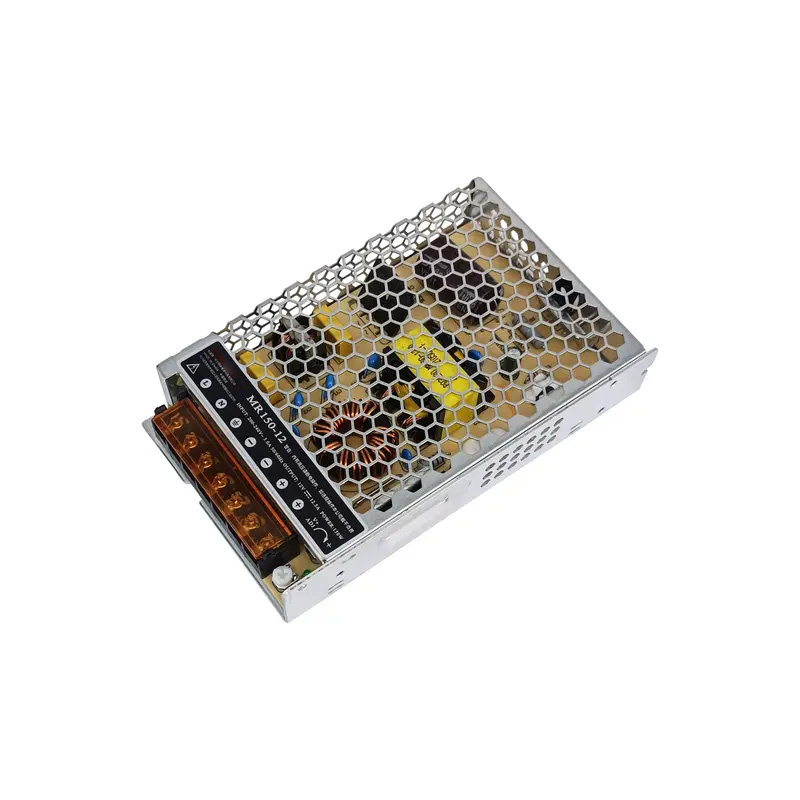

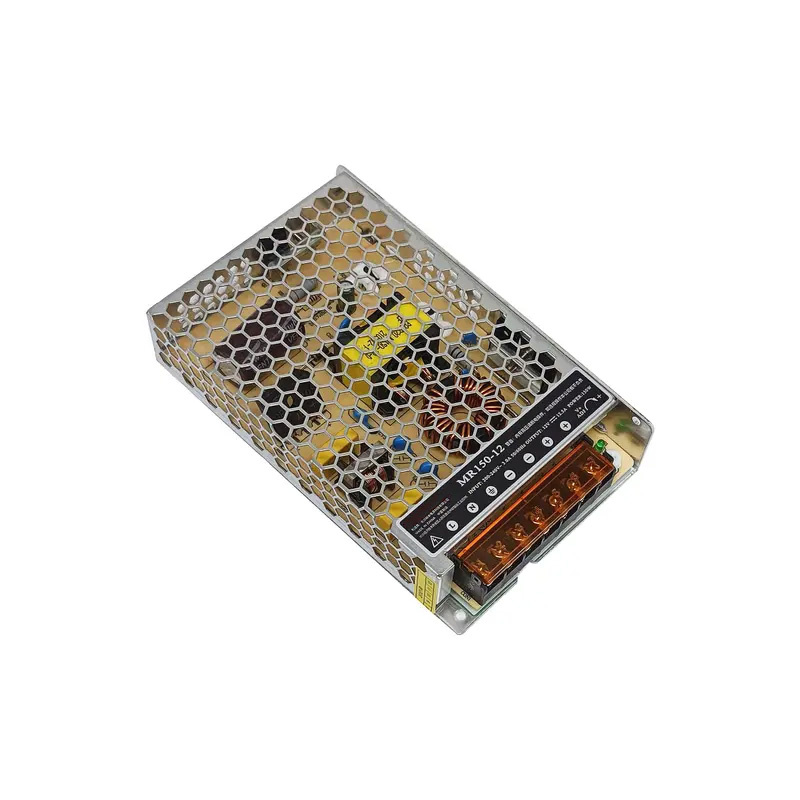

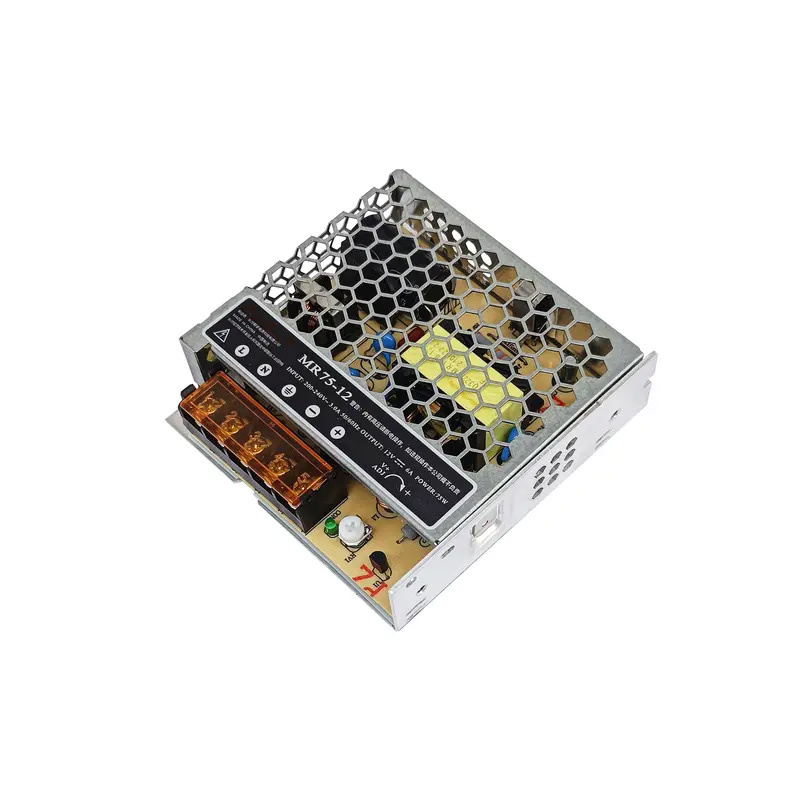

The Zhongyang MR series is an ultra-thin indoor power supply with selectable models ranging from 60W to 400W, featuring constant voltage and constant current operating modes. It adopts a durable all-aluminum casing and a honeycomb ventilation design, effectively enhancing cooling efficiency and ensuring stable performance even in harsh environments. With advantages such as an ultra-thin profile, high efficiency, energy-saving, fanless operation, and low noise, this product is mainly used for industrial control, network communication, indoor LED signage, lighting engineering, illumination projects, or power supply for security and monitoring systems.
Key Features:
-
Reliable Performance: Output power up to 400W with ≥86% efficiency and ±3% voltage regulation accuracy.
-
Output power: 60W-400W, Output voltage: 12V and 24V options available.
-
Full Protection: Integrated overvoltage, overcurrent, and short circuit protection for safety and longevity.
- Product Process：The product adopts a semi-potting process
-
Wide Operating Range: Operates smoothly in temperatures from -30°C to +50°C and in 5%~95% humidity (non-condensing).
-
Compact Design: It is ultra-thin, highly efficient, energy-saving, and silen, easy to install in tight spaces.
-
Certified Quality: Complies with CE, RoHS, ISO9001, and CCC standards for global reliability.
Applications:
- CCTV and security system power supply
- Industrial control, network communication projects
- LED lightboxes and illuminated signage
- Billboard lighting systems
- Architectural façade lighting
- Trade show and exhibition lighting
| Product selection | ZY-75MR-12 | ZY-75MR-24 | ZY-100MR-12 | ZY-100MR-24 | ZY-150MR-12 | ZY-150MR-24 | ZY-250MR-12 | ZY-250MR-24 | ZY-400MR-12 | ZY-400MR-24 |
|---|---|---|---|---|---|---|---|---|---|---|
| Input voltage | 176～264VAC | 176～264VAC | 176～264VAC | 176～264VAC | 176～264VAC | |||||
| Output voltage/current | 12V 6.2A | 24V 3.1A | 12V 8.3A | 24V 4.12A | 12V 12.5A | 24V 6.2A | 12V 20.8A | 24V 10.4A | 12V 33A | 24V 16.5A |
| Voltage regulation accuracy | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Efficiency | ≥87% | ≥88% | ≥87% | ≥88% | ≥87% | ≥88% | ≥87% | ≥88% | ≥87% | ≥88% |
| Protection feature | Overcurrent protection、Overvoltage protectionshort 、Short circuit protection | |||||||||
| Reference standards | GB4943/IEC62368、GB2324、EN55022、IEC61000、GB 17625、GB/T17626、GB/T14714 | |||||||||
| Operating temperature/humidity | -30℃~50℃；5%~95%RH non-condensing | |||||||||
| Altitude | 2000m（Above 3000m, the height rises by 100m，Environment temperature drops 0.6℃） | |||||||||
| Three-proof requirements | IP20 | IP20 | IP20 | IP20 | IP20 | |||||

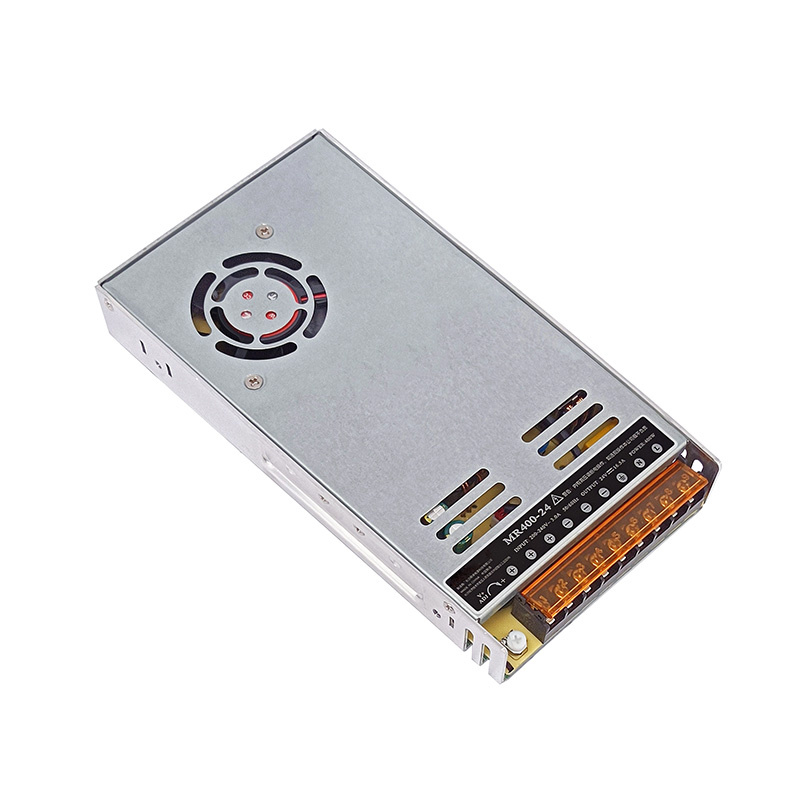

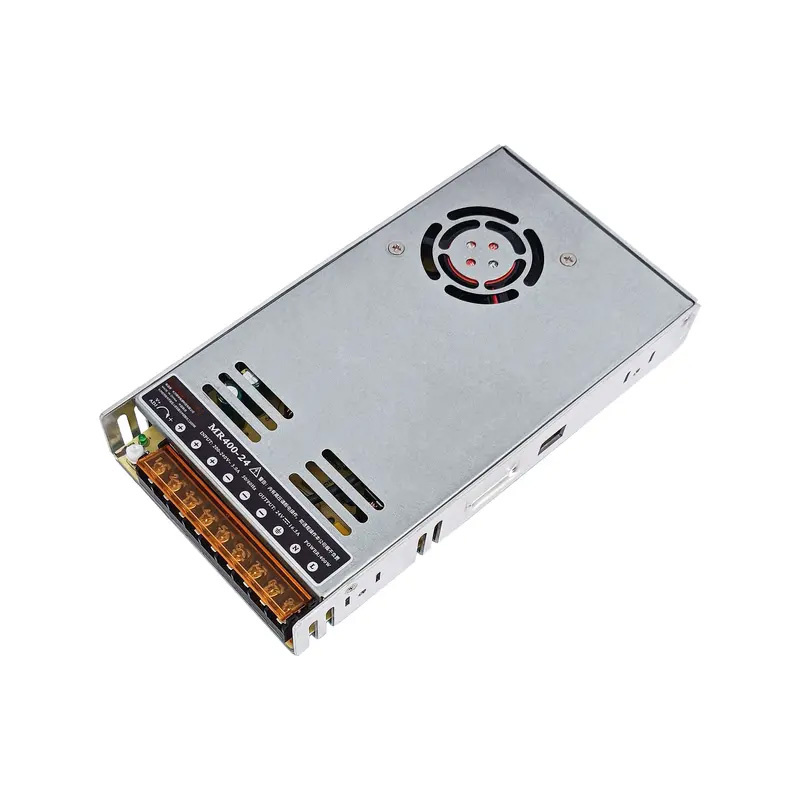

| Heat dissipation method | natural cooling | natural cooling | natural cooling | natural cooling | Fan cooling | |||||
| Product appearance dimensions | 100*97.5*29.5mm | 129*97.5*29.5mm | 158*79*29.5mm | 215*115*29.5mm | 215*115*29.5mm | |||||
| Product packaging weight | 225g | 280g | 332g | 560g | 668g | |||||
| Quantity per box | 60PCS | 45PCS | 40PCS | 30PCS | 30PCS | |||||
| outer box dimensions | 390*345*230mm | 390*345*230mm | 390*345*230mm | 555*235*270mm | 555*235*270mm | |||||
| weight per box | 16.5kg | 15.8kg | 17.8kg | 23.5kg | 23.8kg | |||||
