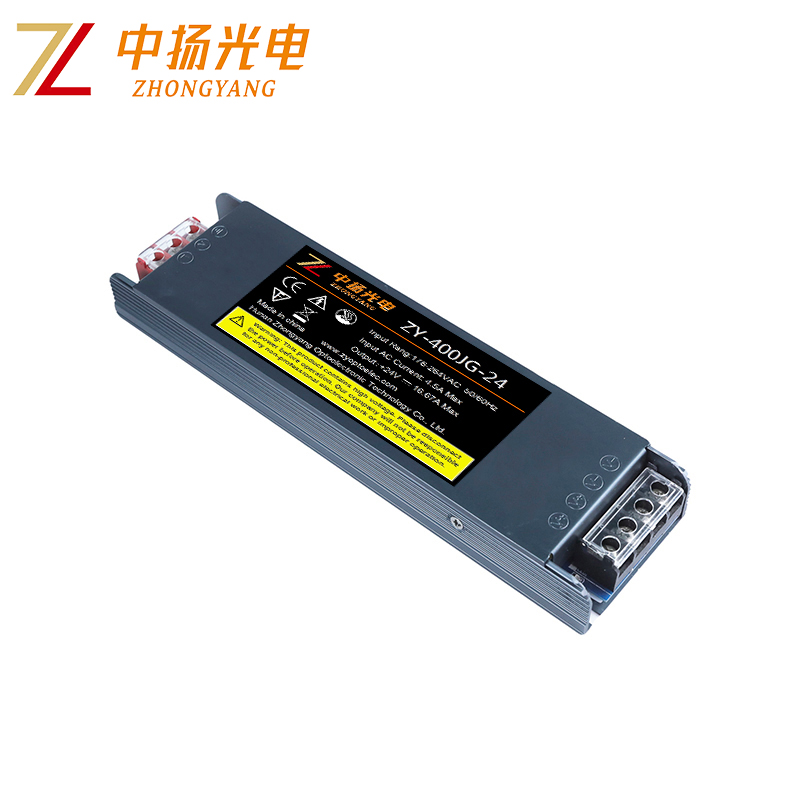

60W-400W JG Series Standard Model Indoor LED driver power supply Specially designed for lighting projects and lightbox advertising signs
-
Reliable Performance: Output power up to 400W with ≥85% efficiency and ±3% voltage regulation accuracy.
-
Output power: 400W, Output voltage: 12V and 24V options available.
-
Full Protection: Integrated overvoltage, overcurrent, and short circuit protection for safety and longevity.
- Product Process：The product adopts a semi-potting process
-
Wide Operating Range: Operates smoothly in temperatures from -30°C to +50°C and in 5%~95% humidity (non-condensing).
-
Compact Design: It is ultra-thin, highly efficient, energy-saving, and silen, easy to install in tight spaces.
-
Certified Quality: Complies with CE, RoHS, ISO9001, and CCC standards for global reliability.
Product Description

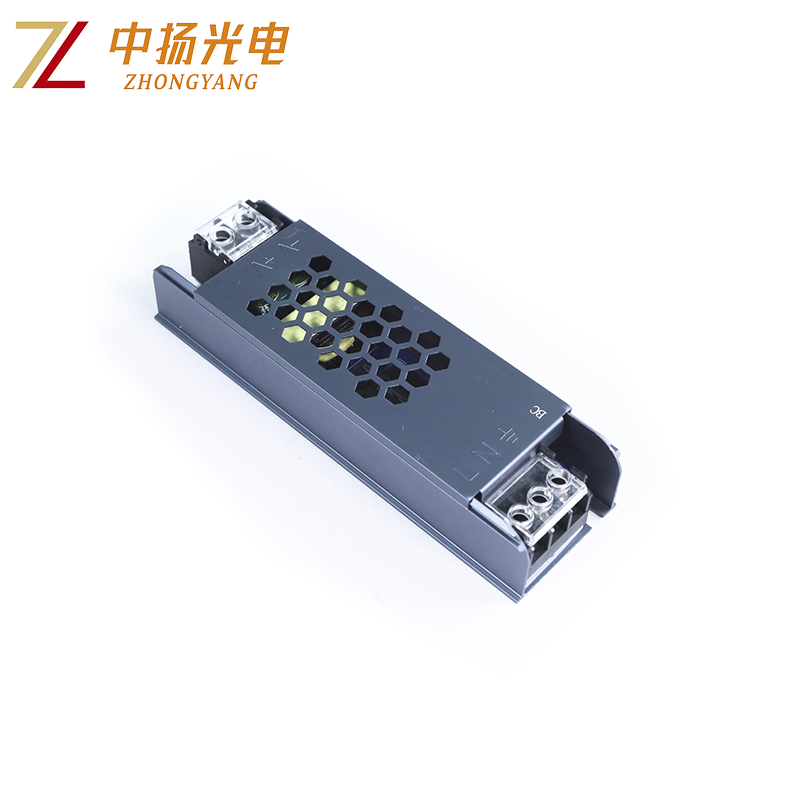

The Zhongyang JG Series is an High end customization indoor LED power supply specially customized for billboards and light boxes. It adopts a durable all-aluminum casing and a honeycomb ventilation design, The product adopts a semi-potting process. which enhances cooling efficiency and delivers stable performance even in harsh environments. Boasting advantages such as ultra-thin profile, high efficiency, energy saving, fanless operation and low noise, this product is mainly applied to LED projects including display cabinets, display racks, ceiling or background wall recessed lighting, and light boxes.
Key Features:
-
Reliable Performance: Output power up to 400W with ≥85% efficiency and ±3% voltage regulation accuracy.
-
Output power: 400W, Output voltage: 12V and 24V options available.
-
Full Protection: Integrated overvoltage, overcurrent, and short circuit protection for safety and longevity.
- Product Process：The product adopts a semi-potting process
-
Wide Operating Range: Operates smoothly in temperatures from -30°C to +50°C and in 5%~95% humidity (non-condensing).
-
Compact Design: It is ultra-thin, highly efficient, energy-saving, and silen, easy to install in tight spaces.
-
Certified Quality: Complies with CE, RoHS, ISO9001, and CCC standards for global reliability.
Applications:
- LED lightboxes and illuminated signage
- Billboard lighting systems
- Architectural façade lighting
- CCTV and security system power supply
- Trade show and exhibition lighting
| Product selection | ZY-60JG-12 | ZY-60JG-24 | ZY-100JG-12 | ZY-100JG-24 | ZY-200JG-12 | ZY-200JG-24 | ZY-300JG-12 | ZY-300JG-24 | ZY-400JG-12 | ZY-400JG-24 |
|---|---|---|---|---|---|---|---|---|---|---|
| Input voltage | 176～264VAC | 176～264VAC | 176～264VAC | 176～264VAC | 176～264VAC | |||||
| Output voltage/current | 12V 5A | 24V 2.5A | 12V 8.3A | 24V 4.2A | 12V 16.5A | 24V 8.3A | 12V 25A | 24V 12.5A | 12V 33A | 24V 16.5A |
| Voltage regulation accuracy | ±5% | ±3% | ±5% | ±3% | ±5% | ±3% | ±5% | ±3% | ±5% | ±3% |
| Efficiency | ≥87.5% | ≥88.5% | ≥86.5% | ≥88% | ≥86.5% | ≥88% | ≥86.5% | ≥88% | ≥86.5% | ≥88% |
| Protection feature | Overcurrent protection、Overvoltage protectionshort 、Short circuit protection | |||||||||
| Reference standards | GB4943/IEC62368、GB2324、EN55022、IEC61000、GB 17625、GB/T17626、GB/T14714 | |||||||||
| Operating temperature/humidity | -30℃~50℃；5%~95%RH non-condensing | |||||||||
| Altitude | 2000m（Above 3000m, the height rises by 100m，Environment temperature drops 0.6℃） | |||||||||
| Three-proof requirements | dustproof | dustproof | dustproof | dustproof | dustproof | dustproof | ||||
| Heat dissipation method | natural cooling | natural cooling | natural cooling | natural cooling | natural cooling | |||||
| Product appearance dimensions | 117*35*23mm | 141*50*24mm | 180*50*24mm | 198*50*24mm | 220*50*26mm | |||||
| Product packaging weight | 75.2g | 136.6g | 192.1g | 205.3g | 305.5g | |||||
| Quantity per box | 160PCS | 120PCS | 90PCS | 78PCS | 60PCS | |||||
| outer box dimensions | 511*305*192mm | 420*330*266mm | 450*389*196mm | 450*389*196mm | 461*301*209mm | |||||
| weight per box | 12.7kg | 17.1kg | 17.9kg | 16.7kg | 19.03kg | |||||
FAQ
When can I get the quotation?
We usually quote within 8 hours after receiving your inquiry. If you are having a very urgent project that needs our quick response, please call us or tell us in your email so that we will regard your inquiry as a priority.
How can I get a sample for quality check?
After price confirmation, you can require samples to check our quality. If you need samples, we will charge the sample cost. But the sample cost can be refunded after order confirmation and the quantity exceeds our MOQ.
Why should you buy from us not from other suppliers?
- With more than 500 workers to ensure timely delivery.
- Our R&D team with more than 20 years' experience on lighting business.
- Platinum partner of OSRAM, Strategic partner of EUCHIPS.
- CB,CE,ROHS,COC,BIS,SAA,ETL certifications approved.
What services can we provide?
We offer the following services and terms:
- Delivery Terms: FOB, CFR, CIF, EXW, CIP, Express Delivery
- Accepted Payment Currencies: USD, EUR, HKD, GBP, CNY
- Accepted Payment Methods: T/T, L/C, Credit Card, PayPal, Western Union, Cash
- Languages Spoken: English, Chinese, Spanish, Japanese
Can you provide ODM/OEM service?
Yes,we have more than 20 years experience in lighting business and we are sure can provide ODM/OEM service for customers.
What's your delivery date?
Usually different items have different delivery date; normal products the delivery date for bulk production is around 20-30 days. For sample is 7-10days.
