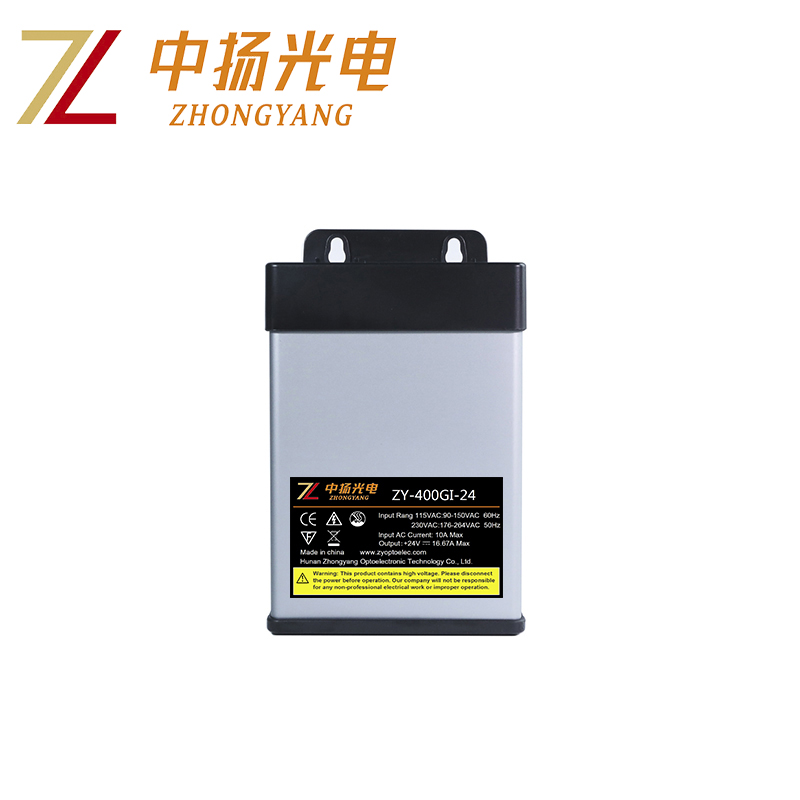

400W Top-selling Item GI Series Outdoor rainproof LED driver power supply Specially designed for lighting projects and lightbox advertising signs
- Design reliability ：Dual-Forward Converter ；Semi-cured glue, Fan cooling ；
- Output Characteristics: Output power 400W ；efficiency ≥85%；voltage regulation accuracy ±3%.
- Output Options: Provide two output specifications: 12V and 24V
- Protection: Integrated overvoltage, overcurrent, and short circuit protection for safety.
- Operating environment: Operates temperatures -30°C to +50°C and in 5%~95% humidity (non-condensing).
- Product appearance dimensions：307×53×22mm.
- Certified Quality: Three-Year Warranty；Complies with CE, ISO9001, and CCC standards.
Product Description
The 400GI series is a high-end engineering grade switching power supply,This series is suitable for large outdoor landscape and building lighting projects.Wide input voltage range ，Satisfy high and low voltage inputs, adjustable in two levels by toggling the switch. It uses high-quality branded components with sufficient margin, ensuring good stability and long-term stable operation of the product,Widely used in foreign markets.
Key Features:
-
Design reliability ：Dual-Forward Converter ；Semi-cured glue, Fan cooling ；
-
Reliable Performance: Output power up to 400W with ≥90% efficiency and ±3% voltage regulation accuracy.
-
Flexible Output Options: Available in 12V/33.3A or 24V/16.6A versions to meet various project needs.
-
Full Protection: Integrated overvoltage, overcurrent, and short circuit protection for safety and longevity.
-
Wide Operating Range: Operates smoothly in temperatures from -30°C to +50°C and in 5%~95% humidity (non-condensing).
-
Compact Design: Slim body (205*115*45mm), easy to install in tight spaces. 50 units per carton.
-
Certified Quality: Complies with CE, RoHS, ISO9001, and CCC standards for global reliability.
Applications:
- LED lightboxes and illuminated signage
- Billboard lighting systems
- Architectural façade lighting
- CCTV and security system power supply
- Trade show and exhibition lighting
| Product selection | ZY-400GI-12 | ZY-400GI-24 |
|---|---|---|
| Input voltage | Two options：90～150VAC/176～264VAC | |
| Output voltage/current | 12V 33A | 24V 16.5A |
| Voltage regulation accuracy | ±3% | ±3% |
| Efficiency | ≥91% | ≥93% |
| Protection feature | Overcurrent protection、Overvoltage protectionshort 、Short circuit protection | |
| Protection feature | GB4943/IEC62368、GB2324、EN55022、IEC61000、GB 17625、GB/T17626、GB/T14714 | |
| Operating temperature/humidity | -40℃~60℃；5%~95%RH non-condensing | |
| Altitude | 2000m（Above 3000m, the height rises by 100m，Environment temperature drops 0.6℃） | |
| Three-proof requirements | Semi-poured glue | |
| Heat dissipation method | Fan cooling | |
| Product appearance dimensions | 180*116*49mm | |
| Product packaging weight | 431g | |
| Quantity per box | 50PCS | |
| outer box dimensions | 635*290*407mm | |
| weight per box | 22.6kg | |
