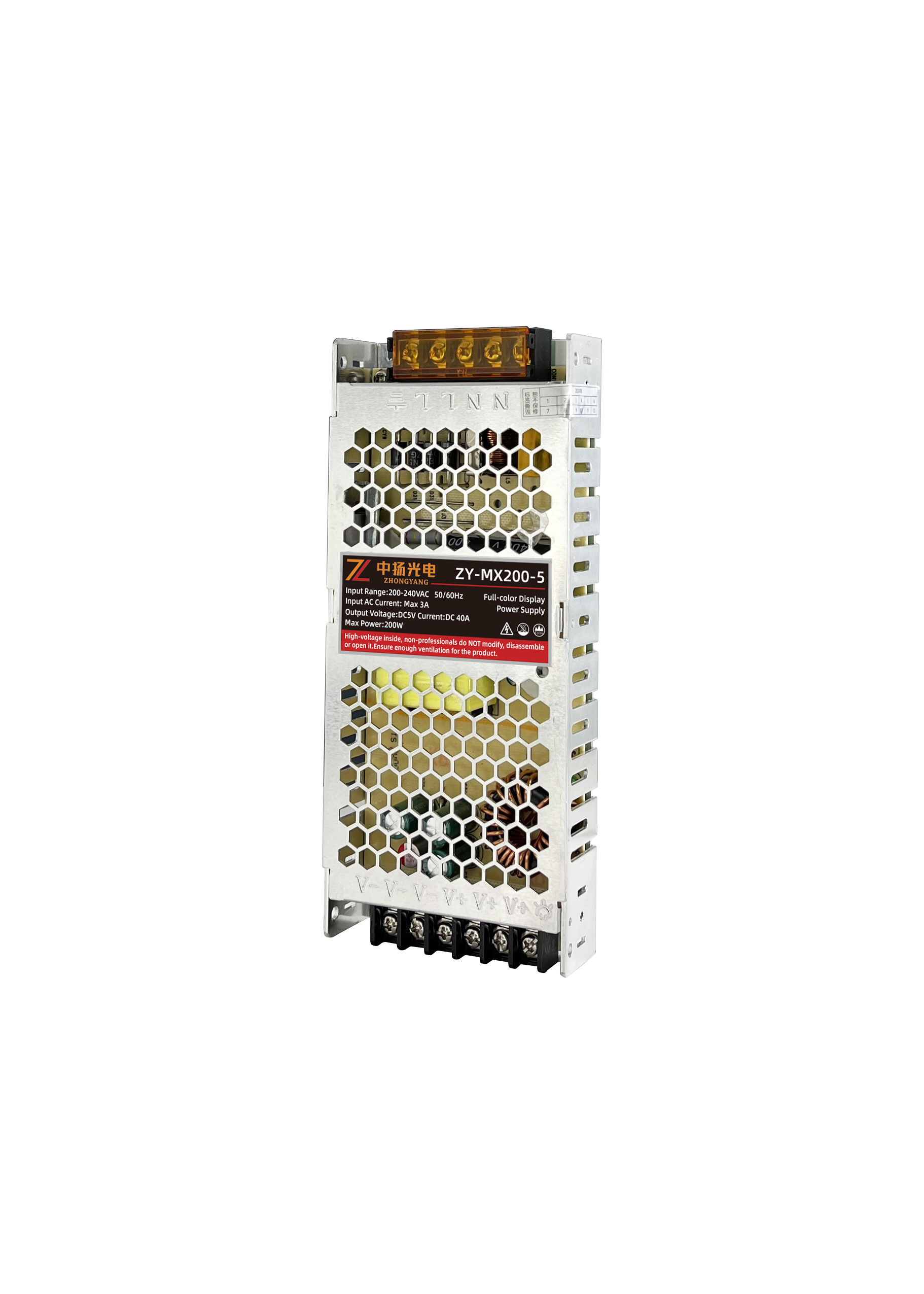

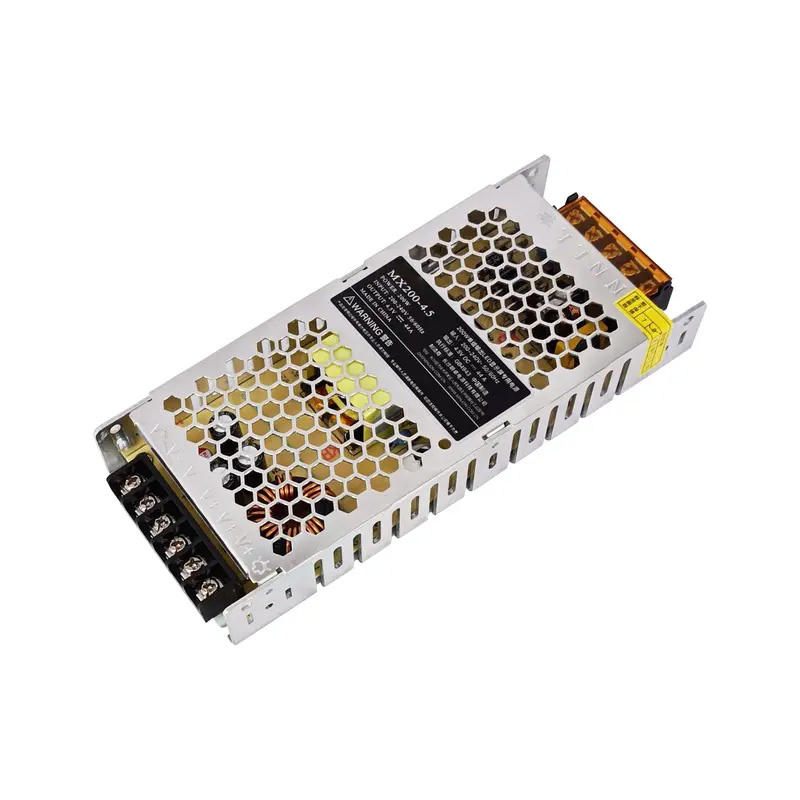

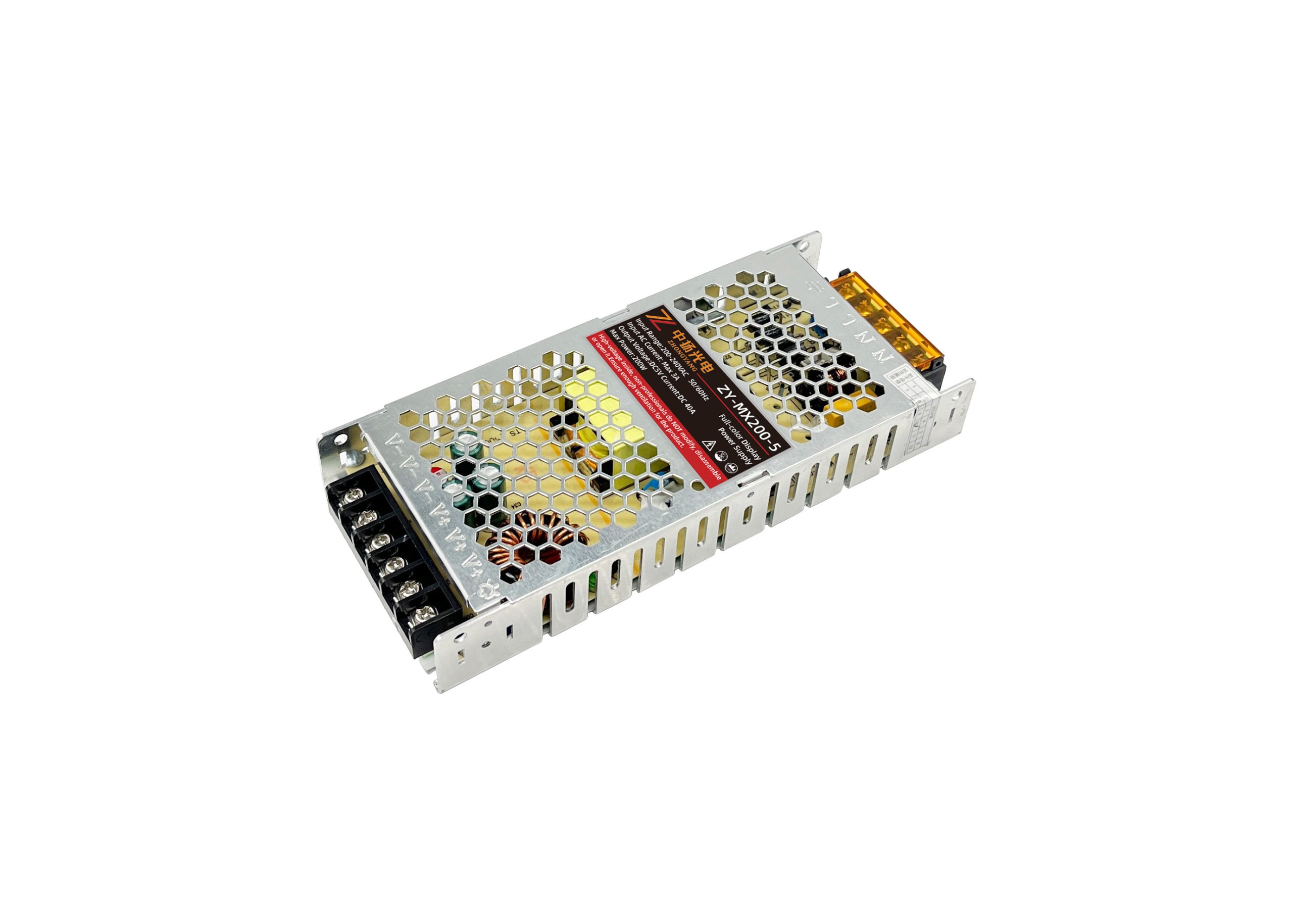

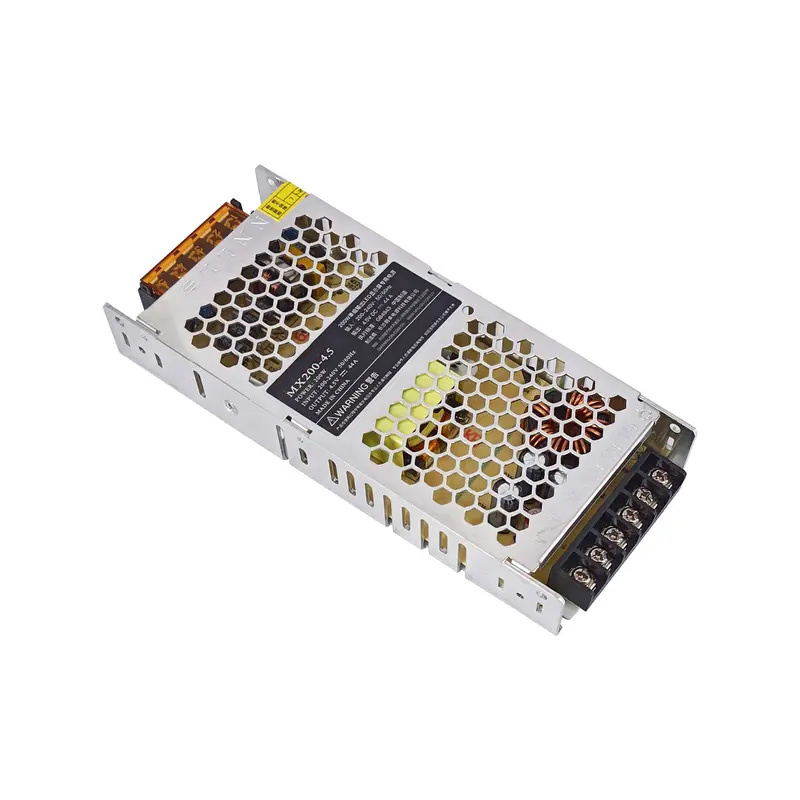

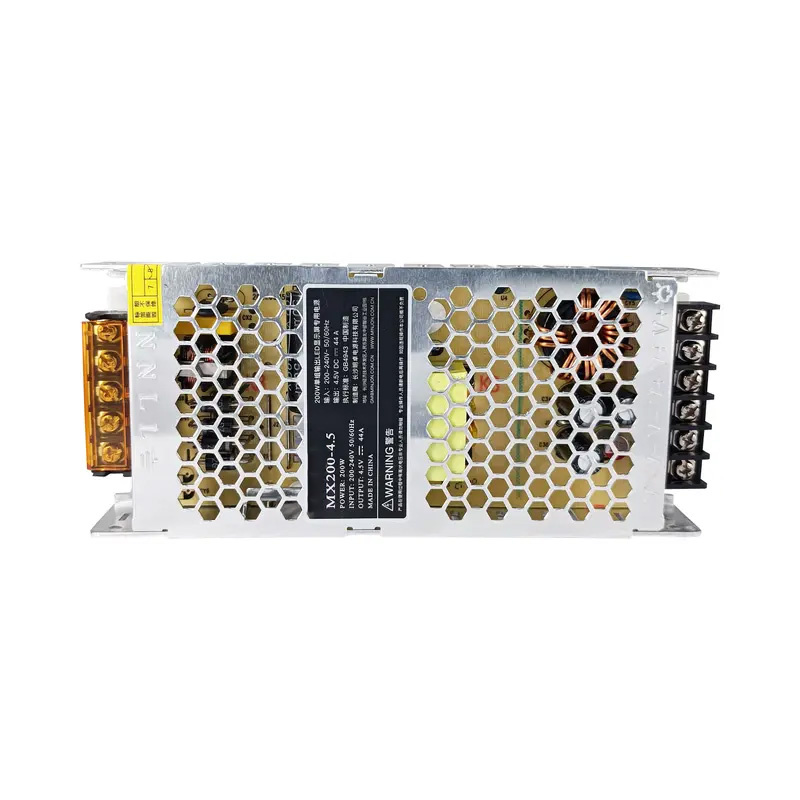

200W-300W MX Series Special power supply for outdoor full-color display screens
-
Reliable Performance: Output power up to 300W with ≥86% efficiency and ±3% voltage regulation accuracy.
-
Output power: 200W-300W, Output voltage: 4.5V and 5V options available.
-
Full Protection: Integrated overvoltage, overcurrent, and short circuit protection for safety and longevity.
-
Wide Operating Range: Operates smoothly in temperatures from -30°C to +50°C and in 5%~95% humidity (non-condensing).
-
Compact Design: It is ultra-thin, highly efficient, energy-saving, and silen, easy to install in tight spaces.
-
Certified Quality: Complies with CE, RoHS, ISO9001, and CCC standards for global reliability.
Product Description
The Zhongyang MX series is a dedicated power supply for LED displays, featuring full power, high efficiency, and components from top brands, ensuring safety and reliability. Its ultra-thin design reduces the installation volume and weight of the display screen. This product is widely used in outdoor advertising displays, naked-eye 3D displays, large-scale displays in supermarkets and other engineering projects.
Key Features:
-
Reliable Performance: Output power up to 300W with ≥86% efficiency and ±3% voltage regulation accuracy.
-
Output power: 200W-300W, Output voltage: 4.5V and 5V options available.
-
Full Protection: Integrated overvoltage, overcurrent, and short circuit protection for safety and longevity.
-
Wide Operating Range: Operates smoothly in temperatures from -30°C to +50°C and in 5%~95% humidity (non-condensing).
-
Compact Design: It is ultra-thin, highly efficient, energy-saving, and silen, easy to install in tight spaces.
-
Certified Quality: Complies with CE, RoHS, ISO9001, and CCC standards for global reliability.
Applications:
- LED advertising display screens/pixel screens/grille screens
- LED illuminated letters/light strips/light bars
- LED lightboxes and illuminated signage
- Industrial control and automation equipment
- Communication and network equipment
| Product selection | ZY-200MX-4.5 | ZY-200MX-5 |
|---|---|---|
| Input voltage | 176～264VAC | |
| Output voltage/current | 4.5V 44A | 5V 40A |
| Voltage regulation accuracy | ±5% | ±5% |
| Efficiency | ≥86% | ≥87% |
| Protection feature | Overcurrent protection、Overvoltage protectionshort 、Short circuit protection | |
| Reference standards | GB4943/IEC62368、GB2324、EN55022、IEC61000、GB 17625、GB/T17626、GB/T14714 | |
| Operating temperature/humidity | -30℃~50℃；5%~95%RH non-condensing | |
| Altitude | 2000m（Above 3000m, the height rises by 100m，Environment temperature drops 0.6℃） | |
| Three-proof requirements | IP20 | |
| Heat dissipation method | natural cooling | |

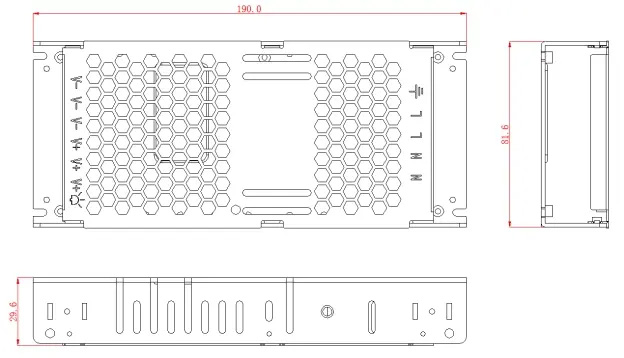

| Product appearance dimensions | 190*81.6*29.6mm | |
| Product packaging weight | 361g | |
| Quantity per box | 60PCS | |
| outer box dimensions | 453*238*300mm | |
| weight per box | 23.7kg | |
