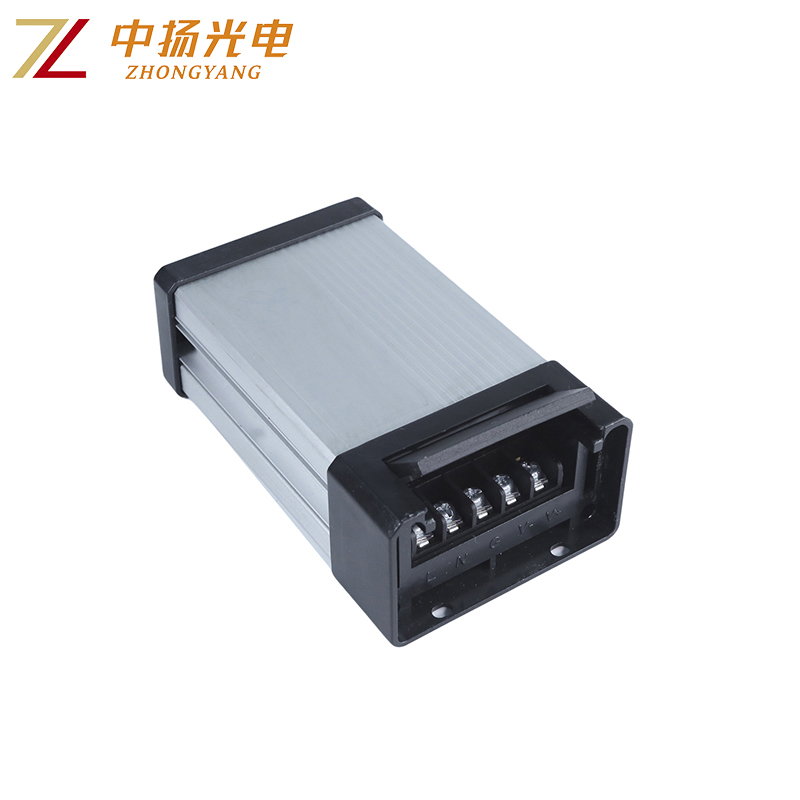

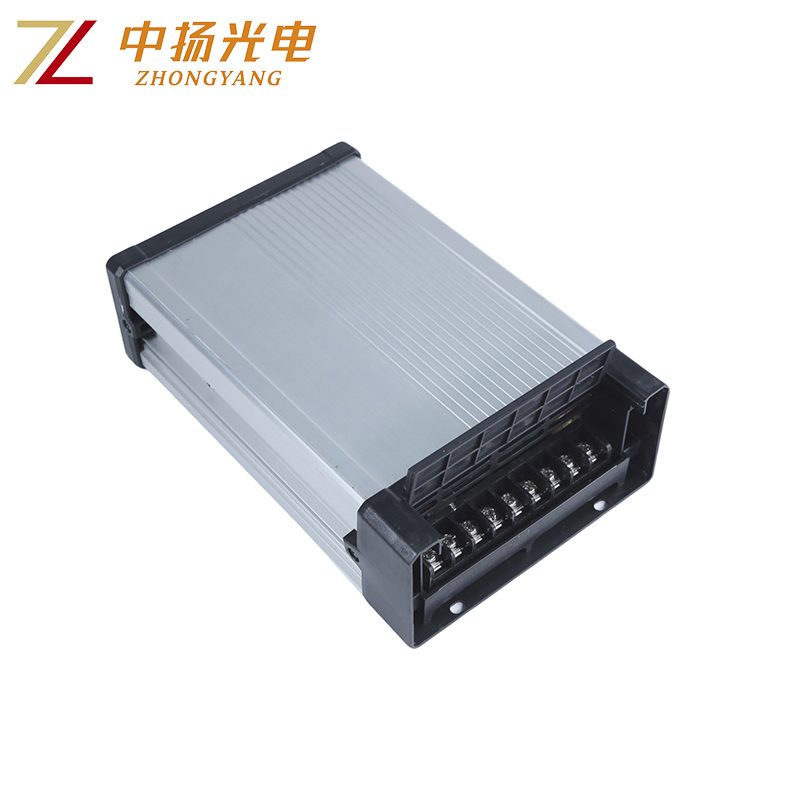

100W 200W 300W 400W 600W AS Series Standard Model Outdoor rainproof LED driver power supply Specially designed for lighting projects and lightbox advertising signs
-
Design reliability ：Dual-Forward Converter , Fan cooling ；
-
Reliable Performance: Output power up to 400W with ≥89% efficiency and ±3% voltage regulation accuracy.
-
Output power: 100W 200W 300W 400W 600W , Output voltage: 12V, 24V.
-
Full Protection: Integrated overvoltage, overcurrent, and short circuit protection for safety and longevity.
-
Wide Operating Range: Operates smoothly in temperatures from -30°C to +50°C and in 5%~95% humidity (non-condensing).
- Certified Quality: Complies with CE, RoHS, ISO9001, and CCC standards for global reliability.
Product Description

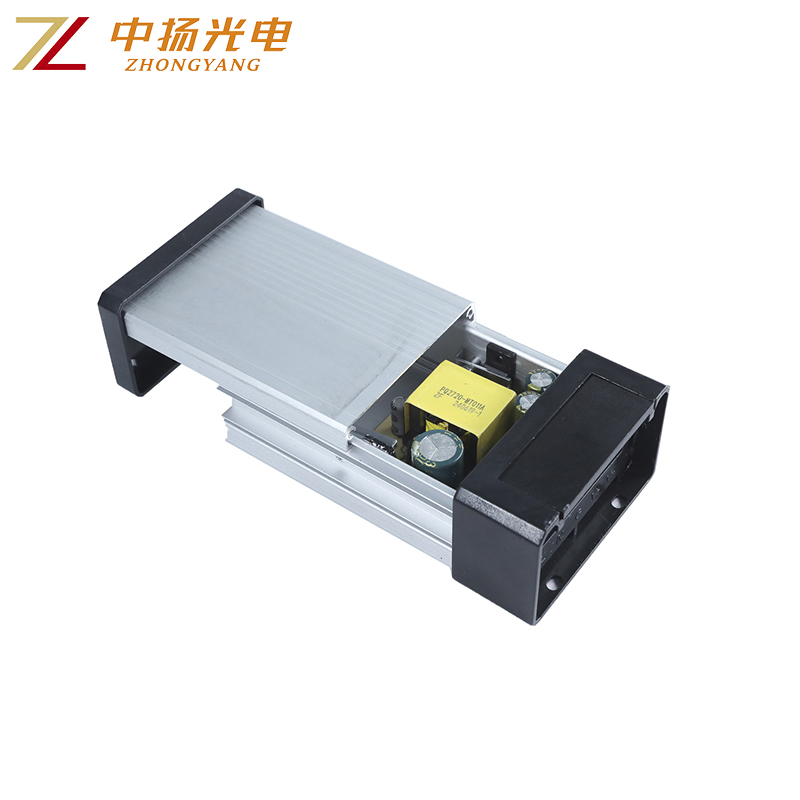

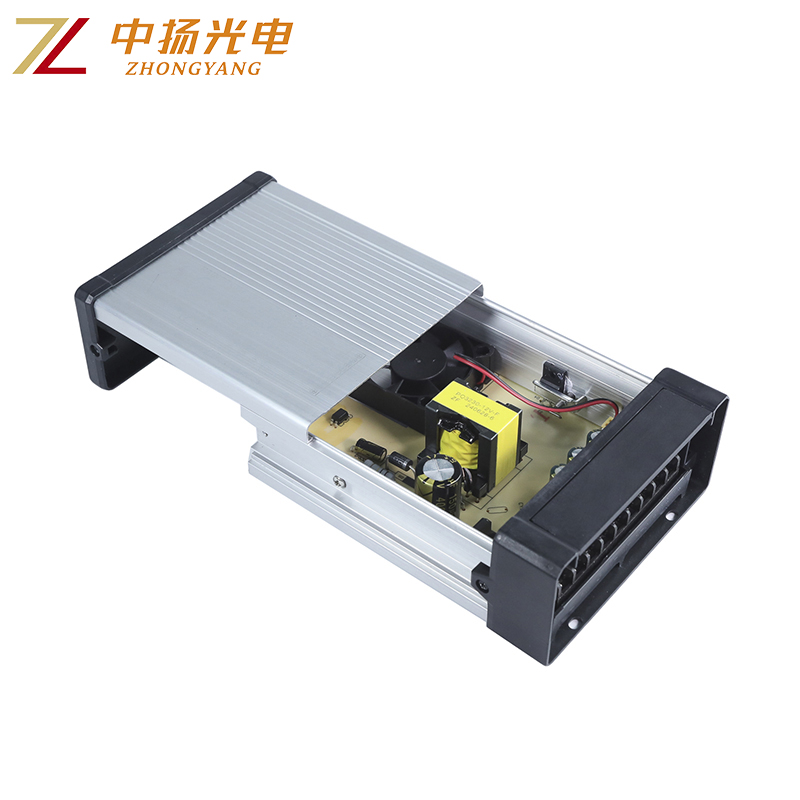

The 100AS 200AS 300AS 400AS 600AS series is a cost-effective, economical power supply with constant voltage and constant current operating modes; it features a full metal housing and uses components from major brands, ensuring product stability and reliability. It is suitable for LED signage, lighting projects, lighting engineering, or security and surveillance systems. suitable for large outdoor landscape and building lighting projects.
Key Features:
-
Design reliability ：Dual-Forward Converter , Fan cooling ；
-
Reliable Performance: Output power range 100W-600W with ≥86% efficiency and ±3% voltage regulation accuracy.
-
Output power: 100W 200W 300W 400W 600W , Output voltage: 12V, 24V.
-
Full Protection: Integrated overvoltage, overcurrent, and short circuit protection for safety and longevity.
-
Wide Operating Range: Operates smoothly in temperatures from -30°C to +50°C and in 5%~95% humidity (non-condensing).
- Certified Quality: Complies with CE, RoHS, ISO9001, and CCC standards for global reliability.
Applications:
- LED lightboxes and illuminated signage
- Billboard lighting systems
- Architectural façade lighting
- CCTV and security system power supply
- Trade show and exhibition lighting

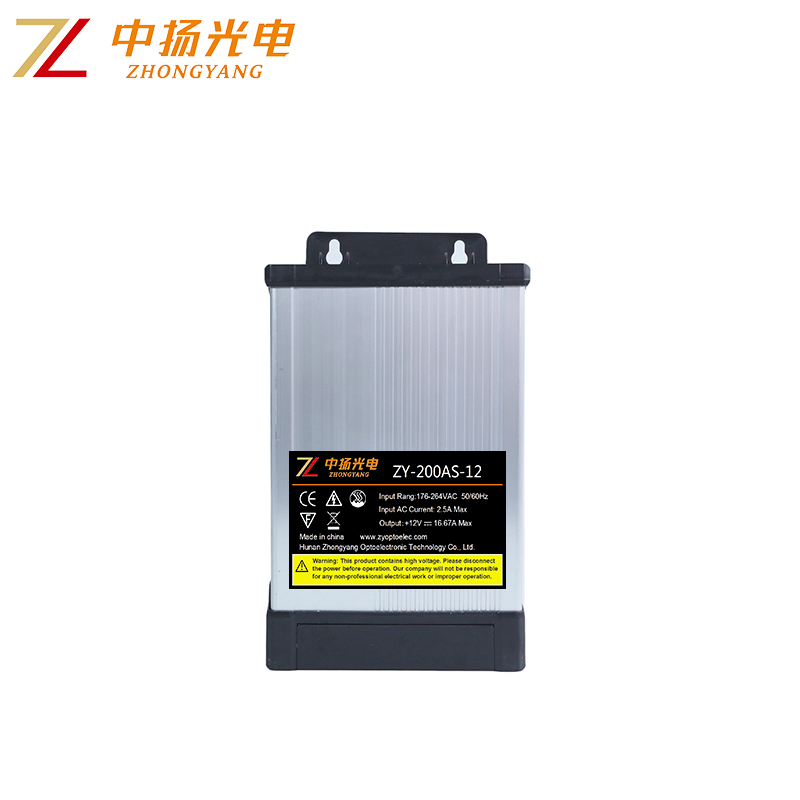

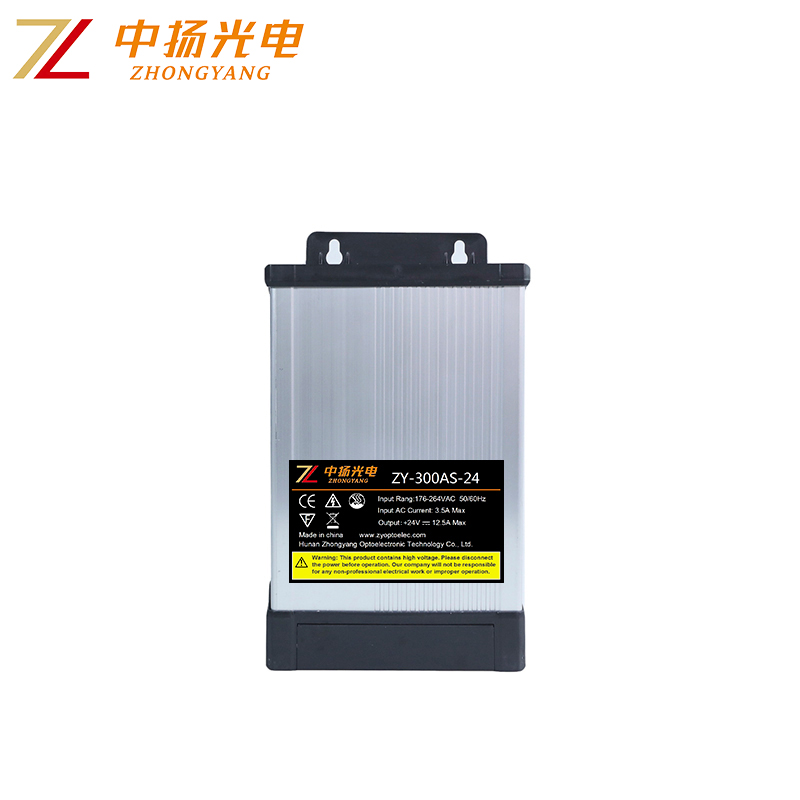

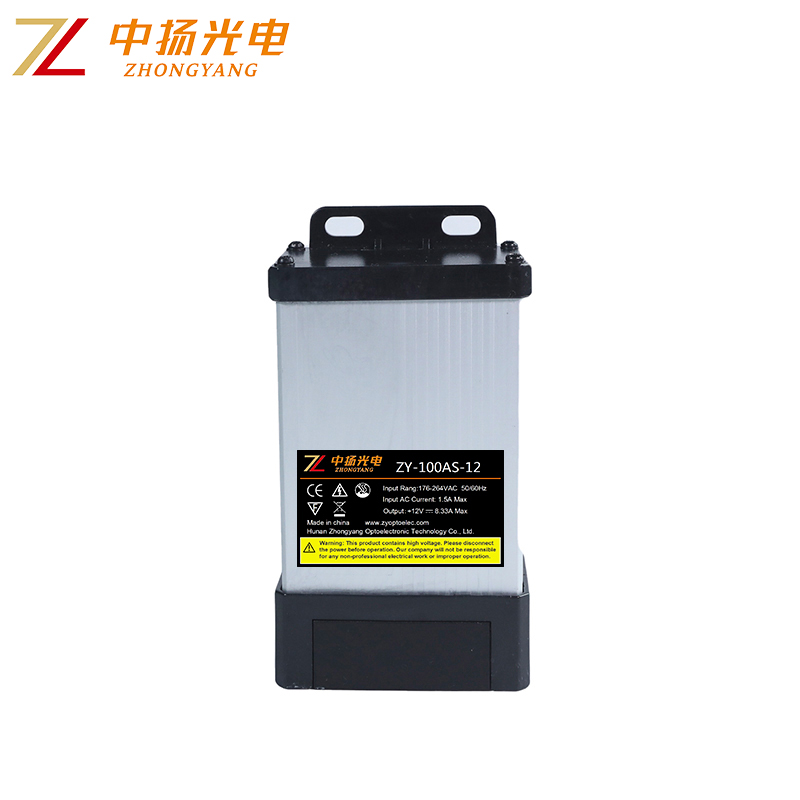

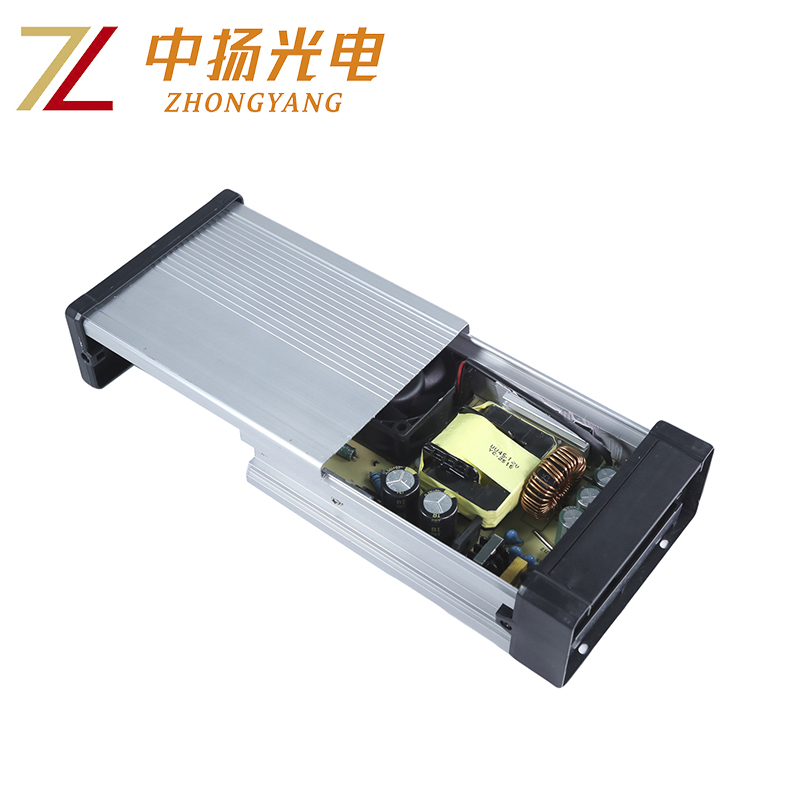

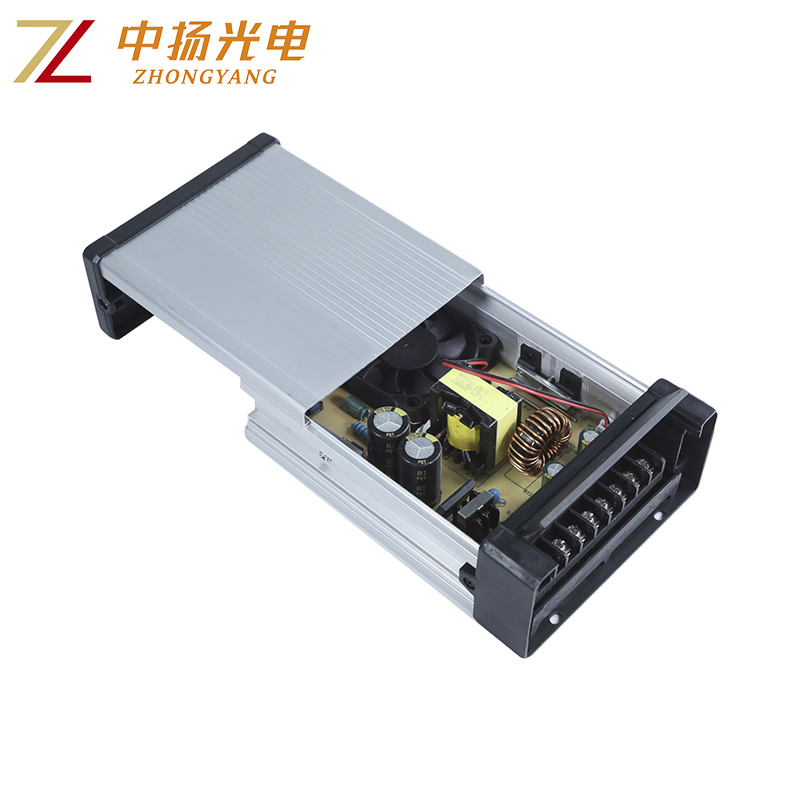

| Product selection | ZY-100AS-12 | ZY-100AS-24 | ZY-200AS-12 | ZY-200AS-24 | ZY-300AS-12 | ZY-300AS-24 | ZY-400AS-12 | ZY-400AS-24 | ZY-600AS-12 | ZY-600AS-24 |
|---|---|---|---|---|---|---|---|---|---|---|
| Input voltage | 176～264VAC | 176～264VAC | 176～264VAC | 176～264VAC | 176～264VAC | |||||
| Output voltage/current | 12V 8.3A | 24V 4.12A | 12V 16.5A | 24V 8.3A | 12V 25A | 24V 12.5A | 12V 33A | 24V 16.5A | 12V 50A | 24V 25A |
| Voltage regulation accuracy | ±5% | ±3% | ±5% | ±3% | ±5% | ±3% | ±5% | ±3% | ±5% | ±3% |
| Efficiency | ≥88% | ≥89.5% | ≥88% | ≥89.5% | ≥88% | ≥89.5% | ≥90% | ≥91% | ≥91% | ≥92.5% |
| Protection feature | Overcurrent protection、Overvoltage protectionshort 、Short circuit protection | |||||||||
| Reference standards | GB4943/IEC62368、GB2324、EN55022、IEC61000、GB 17625、GB/T17626、GB/T14714 | |||||||||
| Operating temperature/humidity | -30℃~50℃；5%~95%RH non-condensing | |||||||||
| Altitude | 2000m（Above 3000m, the height rises by 100m，Environment temperature drops 0.6℃） | |||||||||
| Three-proof requirements | dustproof | dustproof | dustproof | dustproof | Semi-poured glue | Semi-poured glue | Semi-poured glue | |||
| Heat dissipation method | natural cooling | natural cooling | Fan cooling | Fan cooling | Fan cooling | |||||
| Product appearance dimensions | 143*67*45mm | 174*117*55mm | 184*117*55mm | 184*117*55mm | 206*117*55mm | |||||
| Product packaging weight | 225g | 375g | 465g | 612g | 620g | |||||
| Quantity per box | 80PCS | 50PCS | 50PCS | 50PCS | 40PCS | |||||
| outer box dimensions | 615*435*224mm | 635*375*330mm | 635*400*330mm | 635*400*330mm | 635*435*268mm | |||||
| weight per box | 18.8kg | 19.5kg | 24.3kg | 25.2kg | 25.8kg | |||||
